the following table gives the percentage, p, of households with a television set that also have a vcr…

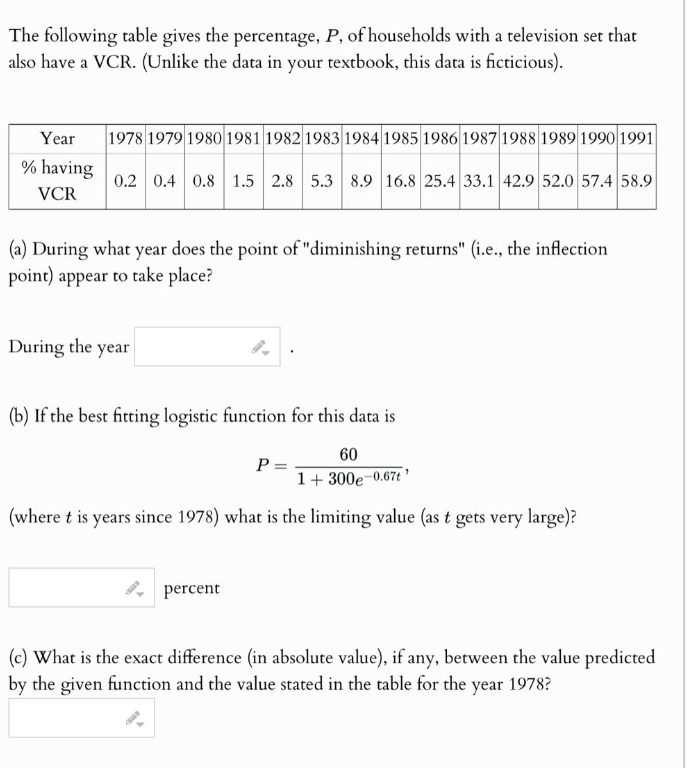

the following table gives the percentage, p, of households with a television set that also have a vcr. (unlike the data in your textbook, this data is fictitious).\nyear 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991\n% having vcr 0.2 0.4 0.8 1.5 2.8 5.3 8.9 16.8 25.4 33.1 42.9 52.0 57.4 58.9\n(a) during what year does the point of \diminishing returns\ (i.e., the inflection point) appear to take place?\nduring the year.\n(b) if the best fitting logistic function for this data is\np = 60 / (1 + 300e^(-0.67t)),\n(where t is years since 1978) what is the limiting value (as t gets very large)?\npercent\n(c) what is the exact difference (in absolute value), if any, between the value predicted by the given function and the value stated in the table for the year 1978?

the following table gives the percentage, p, of households with a television set that also have a vcr. (unlike the data in your textbook, this data is fictitious).\nyear 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991\n% having vcr 0.2 0.4 0.8 1.5 2.8 5.3 8.9 16.8 25.4 33.1 42.9 52.0 57.4 58.9\n(a) during what year does the point of \diminishing returns\ (i.e., the inflection point) appear to take place?\nduring the year.\n(b) if the best fitting logistic function for this data is\np = 60 / (1 + 300e^(-0.67t)),\n(where t is years since 1978) what is the limiting value (as t gets very large)?\npercent\n(c) what is the exact difference (in absolute value), if any, between the value predicted by the given function and the value stated in the table for the year 1978?

Answer

Explanation:

Step1: Identify inflection - point concept

The inflection point in a logistic - type growth curve (which this data likely follows) occurs when the second - derivative of the function is zero. In terms of the data, it is the point where the rate of increase starts to slow down. Looking at the percentage values, we can see that the increase in the percentage of households with VCRs starts to slow down around 1986. Before 1986, the increases are relatively large (e.g., from 5.3 to 8.9, then to 16.8), and after 1986, the increases are smaller (e.g., from 25.4 to 33.1).

Step2: Find the limiting value of the logistic function

For a logistic function of the form $P=\frac{L}{1 + Ae^{-bt}}$, as $t\rightarrow\infty$, $e^{-bt}\rightarrow0$. Given $P=\frac{60}{1 + 300e^{-0.67t}}$, when $t$ gets very large, $e^{-0.67t}\rightarrow0$. Then $P=\frac{60}{1+0}=60$.

Step3: Calculate the predicted value for 1978 and find the difference

For $t = 0$ (since $t$ is years since 1978), we substitute $t = 0$ into $P=\frac{60}{1 + 300e^{-0.67t}}$. When $t = 0$, $e^{-0.67t}=e^{0}=1$. So $P=\frac{60}{1 + 300}=\frac{60}{301}\approx0.1993$. The value in the table for 1978 is 0.2. The absolute - value difference is $|0.2-\frac{60}{301}|=| \frac{0.2\times301 - 60}{301}|=|\frac{60.2 - 60}{301}|=\frac{0.2}{301}\approx0.0007$.

Answer:

(a) 1986 (b) 60 (c) $\frac{0.2}{301}\approx0.0007$
