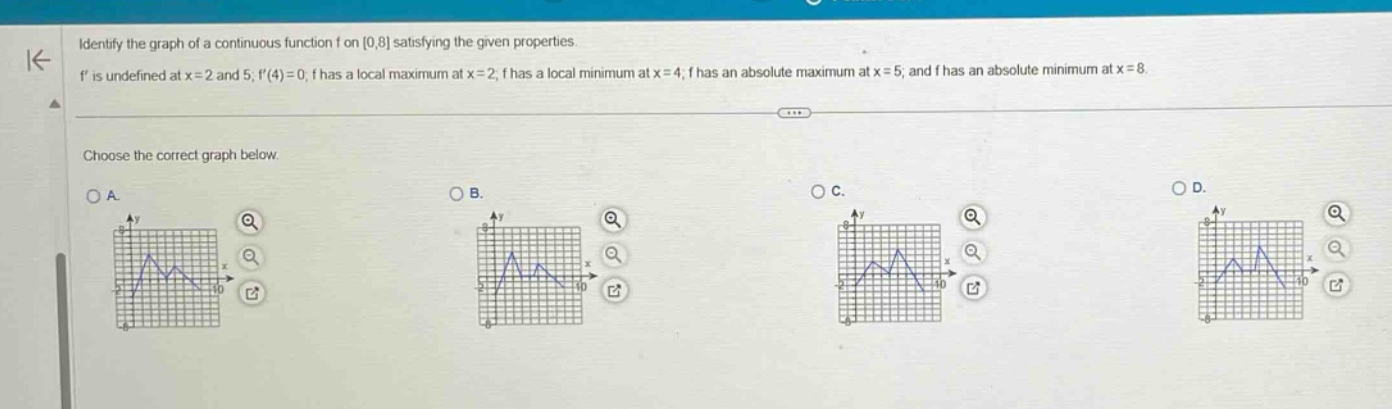

identify the graph of a continuous function f on 0,8 satisfying the given properties. f is undefined at x =…

Explanation:

Step1: Analyze derivative - undefined points

The derivative $f^{\prime}$ is undefined at $x = 2$ and $x=5$. This usually means there are sharp - corners, vertical tangents or discontinuities in the derivative. At these points, the graph of the function may have a sharp turn.

Step2: Analyze critical point

Since $f^{\prime}(4)=0$, there is a horizontal tangent at $x = 4$. A local minimum or maximum can occur at a point where the derivative is zero.

Step3: Analyze local extrema

$f$ has a local maximum at $x = 2$. So the function changes from increasing to decreasing at $x = 2$. $f$ has a local minimum at $x = 4$, so the function changes from decreasing to increasing at $x = 4$.

Step4: Analyze absolute extrema

$f$ has an absolute maximum at $x = 5$ and an absolute minimum at $x = 8$. So the highest point of the function on the interval $[0,8]$ is at $x = 5$ and the lowest point is at $x = 8$.

Answer:

(Without seeing the actual graphs A, B, C, D, we can't give a specific letter - choice. But the correct graph should have a sharp - turn or non - differentiable behavior at $x = 2$ and $x = 5$, a horizontal tangent at $x = 4$, a local maximum at $x = 2$, a local minimum at $x = 4$, an absolute maximum at $x = 5$ and an absolute minimum at $x = 8$)
