identify the graph of a continuous function f on 0,8 satisfying the given properties. f is undefined at x =…

identify the graph of a continuous function f on 0,8 satisfying the given properties. f is undefined at x = 2 and 5; f(4)=0; f has a local maximum at x = 2; f has a local minimum at x = 4; f has an absolute maximum at x = 5, and f has an absolute minimum at x = 8. choose the correct graph below.

Answer

Explanation:

Step1: Analyze local - maximum at x = 2

A local maximum at x = 2 means the function changes from increasing to decreasing at x = 2. Also, since f'(x) is undefined at x = 2, the graph has a sharp - point or a vertical tangent at x = 2.

Step2: Analyze f'(4)=0 and local minimum at x = 4

f'(4) = 0 indicates a horizontal tangent at x = 4, and it is a local minimum, so the function changes from decreasing to increasing at x = 4.

Step3: Analyze absolute maximum at x = 5

The function reaches its highest value on the interval [0,8] at x = 5.

Step4: Analyze absolute minimum at x = 8

The function reaches its lowest value on the interval [0,8] at x = 8.

Step5: Check each option

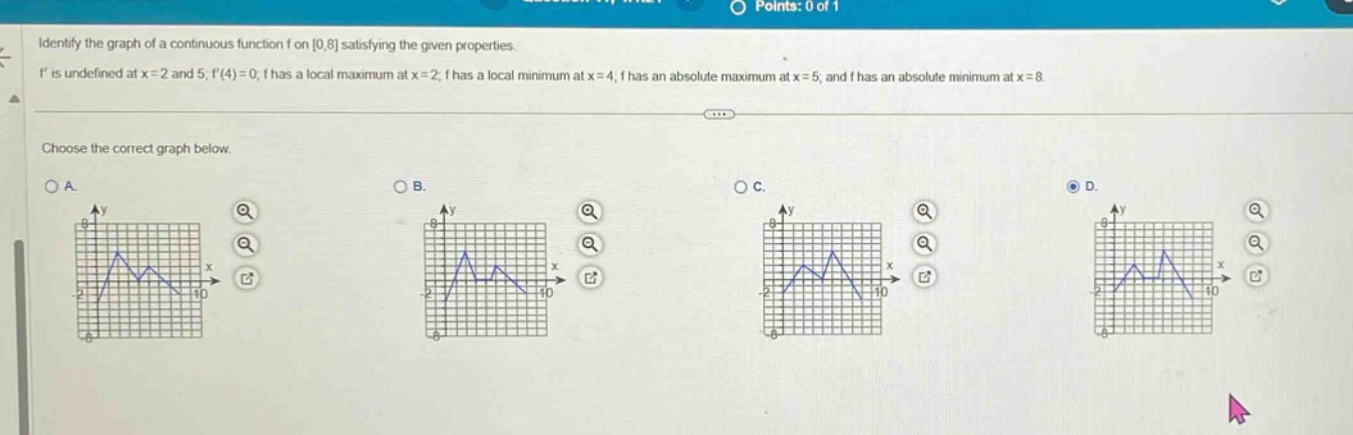

By examining the graphs in options A, B, C, and D, we can eliminate options that do not satisfy all the given conditions. Option D satisfies all the conditions: a local maximum at x = 2 (sharp - point and change from increasing to decreasing), a horizontal tangent and local minimum at x = 4, an absolute maximum at x = 5, and an absolute minimum at x = 8.
