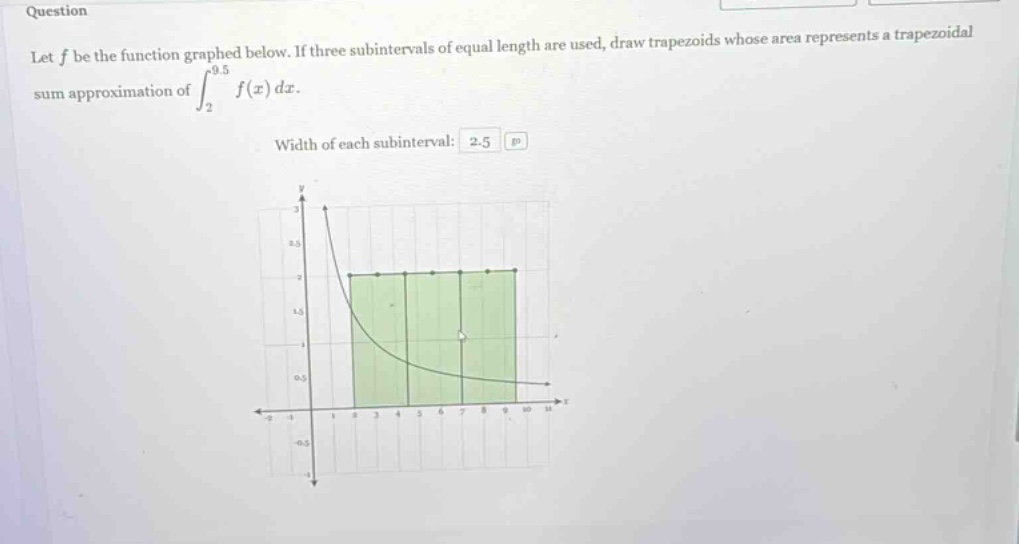

question let f be the function graphed below. if three subintervals of equal length are used, draw trapezoids whose area represents a trapezoidal sum approximation of ∫₂⁹.⁵ f(x) dx. width of each subinterval: 2.5

question let f be the function graphed below. if three subintervals of equal length are used, draw trapezoids whose area represents a trapezoidal sum approximation of ∫₂⁹.⁵ f(x) dx. width of each subinterval: 2.5

Answer

Explanation:

Step1: Recall trapezoidal - rule formula

The trapezoidal - rule for approximating $\int_{a}^{b}f(x)dx$ with $n$ sub - intervals of width $\Delta x=\frac{b - a}{n}$ is $T_n=\frac{\Delta x}{2}[f(x_0)+2f(x_1)+2f(x_2)+\cdots+2f(x_{n - 1})+f(x_n)]$, where $x_i=a + i\Delta x$ for $i = 0,1,\cdots,n$. Here, $a = 2$, $b = 9.5$, and $n = 3$. Given $\Delta x=2.5$. Then $x_0 = 2$, $x_1=2 + 2.5=4.5$, $x_2=4.5 + 2.5 = 7$, $x_3=7+2.5 = 9.5$.

Step2: Identify function values from the graph

We need to estimate $f(x_0)$, $f(x_1)$, $f(x_2)$, and $f(x_3)$ from the graph. Let's assume the values of the function at these points are $f(x_0)=y_0$, $f(x_1)=y_1$, $f(x_2)=y_2$, $f(x_3)=y_3$.

Step3: Calculate the trapezoidal sum

$T_3=\frac{2.5}{2}[f(2)+2f(4.5)+2f(7)+f(9.5)]=\frac{2.5}{2}(y_0 + 2y_1+2y_2 + y_3)$.

However, since we are only asked to draw the trapezoids:

  1. Mark the points $x = 2$, $x = 4.5$, $x = 7$, and $x = 9.5$ on the $x$ - axis.
  2. For the first trapezoid: Connect the points $(2,f(2))$, $(4.5,f(4.5))$, $(4.5,0)$, and $(2,0)$ with straight - lines.
  3. For the second trapezoid: Connect the points $(4.5,f(4.5))$, $(7,f(7))$, $(7,0)$, and $(4.5,0)$ with straight - lines.
  4. For the third trapezoid: Connect the points $(7,f(7))$, $(9.5,f(9.5))$, $(9.5,0)$, and $(7,0)$ with straight - lines.

The problem doesn't ask for a numerical value, just the drawing of the trapezoids to represent the trapezoidal sum approximation.

Answer:

Draw trapezoids as described above with vertices based on the function values at $x = 2$, $x = 4.5$, $x = 7$, and $x = 9.5$ and the $x$ - axis.
