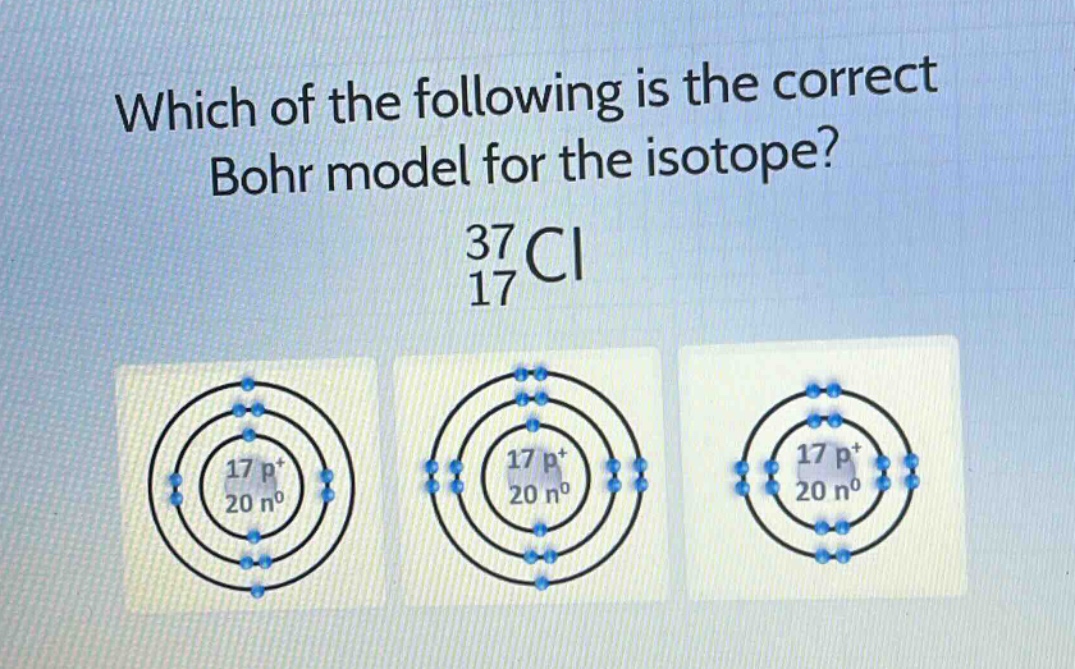

which of the following is the correct bohr model for the isotope?\n37 17 cl

Explanation:

Step1: Determine protons, neutrons, and electrons.

The notation $^{37}_{17}$Cl indicates: Atomic number (Z) = 17, so number of protons (p$^+$) = 17. Mass number (A) = 37. Number of neutrons (n$^0$) = A - Z = $37 - 17 = 20$. For a neutral atom, number of electrons (e$^-$) = number of protons = 17.

Step2: Determine the electron configuration.

Electrons fill shells according to the Bohr model (2, 8, 18...). Shell 1: 2 electrons. Shell 2: 8 electrons. Shell 3: Remaining electrons = $17 - (2 + 8) = 7$ electrons. The electron configuration is 2, 8, 7.

Step3: Evaluate the options.

Compare the calculated nucleus composition (17 p$^+$, 20 n$^0$) and electron configuration (2, 8, 7) with the diagrams. Option 1 (Left): Nucleus (17 p$^+$, 20 n$^0$), Electrons (2, 8, 7). This matches. Option 2 (Middle): Nucleus (17 p$^+$, 20 n$^0$), Electrons (2, 7, 8). Incorrect configuration. Option 3 (Right): Nucleus (17 p$^+$, 20 n$^0$), Electrons (2, 8). Incorrect number of electrons and shells.

Answer:

The correct Bohr model is the leftmost diagram.
