the graph shows a reaction diagram for 2h₂ + o₂ → 2h₂o. at which point on the graph is the activation…

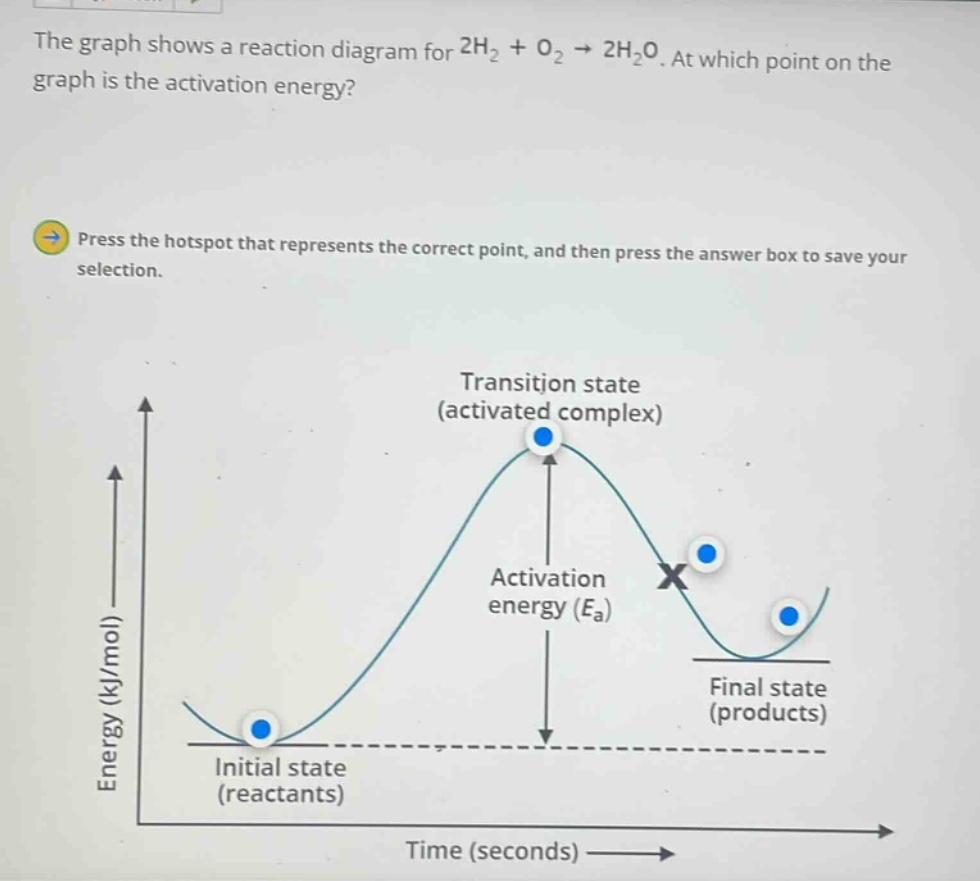

the graph shows a reaction diagram for 2h₂ + o₂ → 2h₂o. at which point on the graph is the activation energy? press the hotspot that represents the correct point, and then press the answer box to save your selection.
Answer
Answer:
The point at the top of the curve (transition state/activated complex)
Brief Explanations:
Activation energy is the minimum energy that reacting species must have to undergo a chemical reaction. On a reaction - energy diagram, it is the energy difference between the reactants and the transition state (the highest - energy point on the curve).
