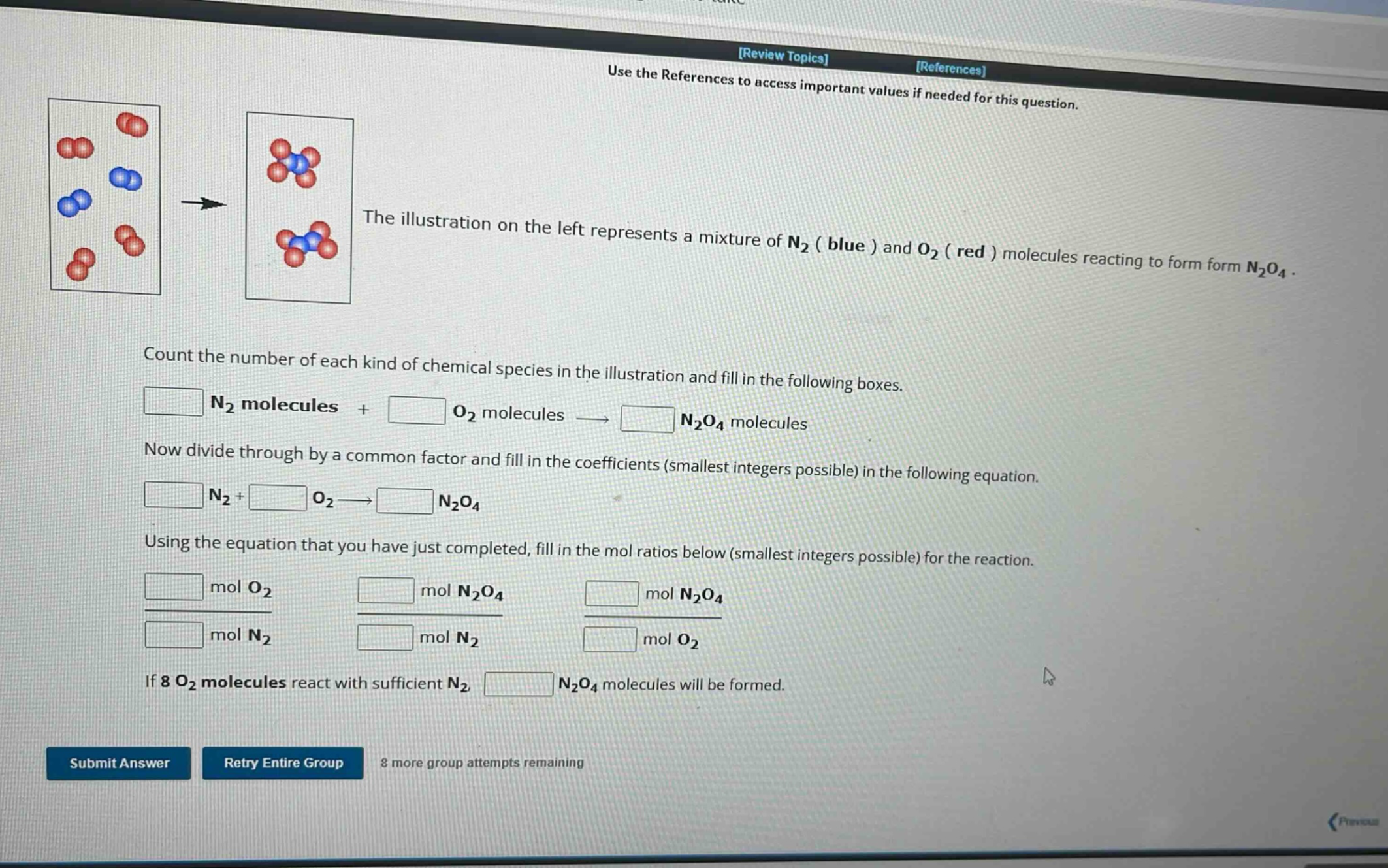

use the references to access important values if needed for this question. the illustration on the left represents a mixture of n₂ ( blue ) and o₂ ( red ) molecules reacting to form form n₂o₄. count the number of each kind of chemical species in the illustration and fill in the following boxes. n₂ molecules + o₂ molecules → n₂o₄ molecules now divide through by a common factor and fill in the coefficients (smallest integers possible) in the following equation. n₂+ o₂→ n₂o₄ using the equation that you have just completed, fill in the mol ratios below (smallest integers possible) for the reaction. mol o₂ / mol n₂ mol n₂o₄ / mol n₂ mol n₂o₄ / mol o₂ if 8 o₂ molecules react with sufficient n₂, n₂o₄ molecules will be formed. submit answer retry entire group 8 more group attempts remaining

use the references to access important values if needed for this question. the illustration on the left represents a mixture of n₂ ( blue ) and o₂ ( red ) molecules reacting to form form n₂o₄. count the number of each kind of chemical species in the illustration and fill in the following boxes. n₂ molecules + o₂ molecules → n₂o₄ molecules now divide through by a common factor and fill in the coefficients (smallest integers possible) in the following equation. n₂+ o₂→ n₂o₄ using the equation that you have just completed, fill in the mol ratios below (smallest integers possible) for the reaction. mol o₂ / mol n₂ mol n₂o₄ / mol n₂ mol n₂o₄ / mol o₂ if 8 o₂ molecules react with sufficient n₂, n₂o₄ molecules will be formed. submit answer retry entire group 8 more group attempts remaining

Answer

Explanation:

Step1: Count molecules

From the illustration, there are 2 $N_2$ molecules and 4 $O_2$ molecules on the left - hand side, and 2 $N_2O_4$ molecules on the right - hand side. So the first - step equation is $2N_2+4O_2\rightarrow2N_2O_4$.

Step2: Simplify the equation

Divide each coefficient by 2. The simplified chemical equation is $N_2 + 2O_2\rightarrow N_2O_4$.

Step3: Determine mole ratios

From the balanced equation $N_2 + 2O_2\rightarrow N_2O_4$, the mole ratios are: $\frac{2\ mol\ O_2}{1\ mol\ N_2}$, $\frac{1\ mol\ N_2O_4}{1\ mol\ N_2}$, $\frac{1\ mol\ N_2O_4}{2\ mol\ O_2}$.

Step4: Calculate product amount

From the balanced equation, the mole ratio of $O_2$ to $N_2O_4$ is 2:1. If 8 $O_2$ molecules react with sufficient $N_2$, the number of $N_2O_4$ molecules formed is $\frac{8}{2}=4$.

Answer:

  1. First row: 2, 4, 2
  2. Second row: 1, 2, 1
  3. Third row: 2, 1, 1, 1, 1, 2
  4. Fourth row: 4
