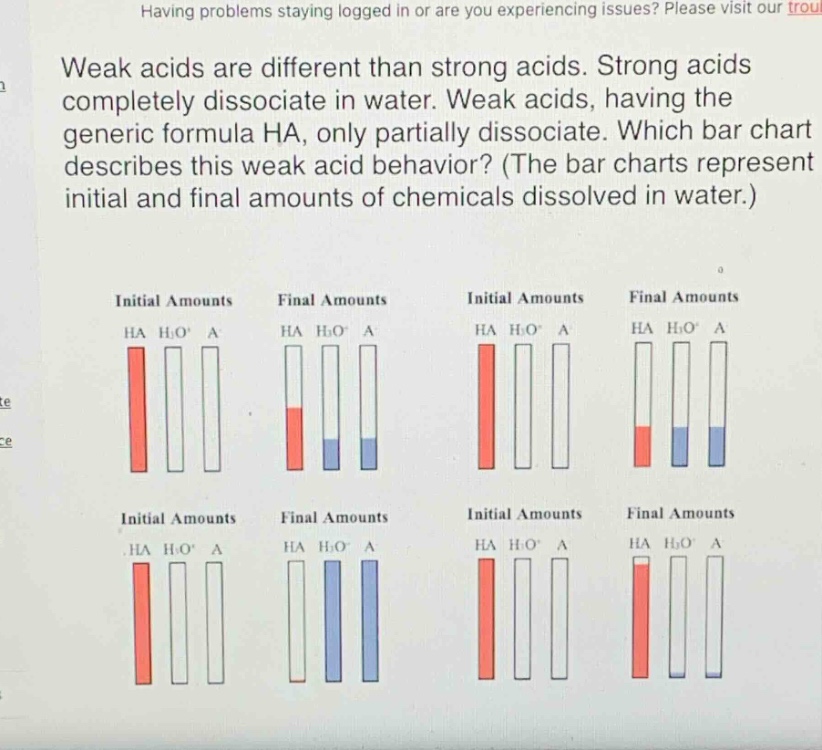

weak acids are different than strong acids. strong acids completely dissociate in water. weak acids, having the generic formula ha, only partially dissociate. which bar chart describes this weak - acid behavior? (the bar charts represent initial and final amounts of chemicals dissolved in water.) initial amounts final amounts initial amounts final amounts ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ initial amounts final amounts initial amounts final amounts ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻

weak acids are different than strong acids. strong acids completely dissociate in water. weak acids, having the generic formula ha, only partially dissociate. which bar chart describes this weak - acid behavior? (the bar charts represent initial and final amounts of chemicals dissolved in water.) initial amounts final amounts initial amounts final amounts ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ initial amounts final amounts initial amounts final amounts ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻ ha h₃o⁺ a⁻

Answer

Explanation:

Step1: Understand weak - acid dissociation

A weak acid HA in water has the equilibrium reaction $HA + H_2O\rightleftharpoons H_3O^++A^-$. Initially, there is only HA.

Step2: Analyze dissociation result

Since it is a partial - dissociation, at equilibrium, there will still be some HA remaining along with the formed $H_3O^+$ and $A^-$ ions.

Step3: Evaluate bar - charts

The bar - chart should show a non - zero amount of HA in the final amounts, along with non - zero amounts of $H_3O^+$ and $A^-$. The first bar - chart in the top left (where in the initial amounts there is only HA and in the final amounts there is some HA left along with $H_3O^+$ and $A^-$) is correct.

Answer: The first bar - chart in the top left (where in the initial amounts there is only HA and in the final amounts there is some HA left along with $H_3O^+$ and $A^-$)
