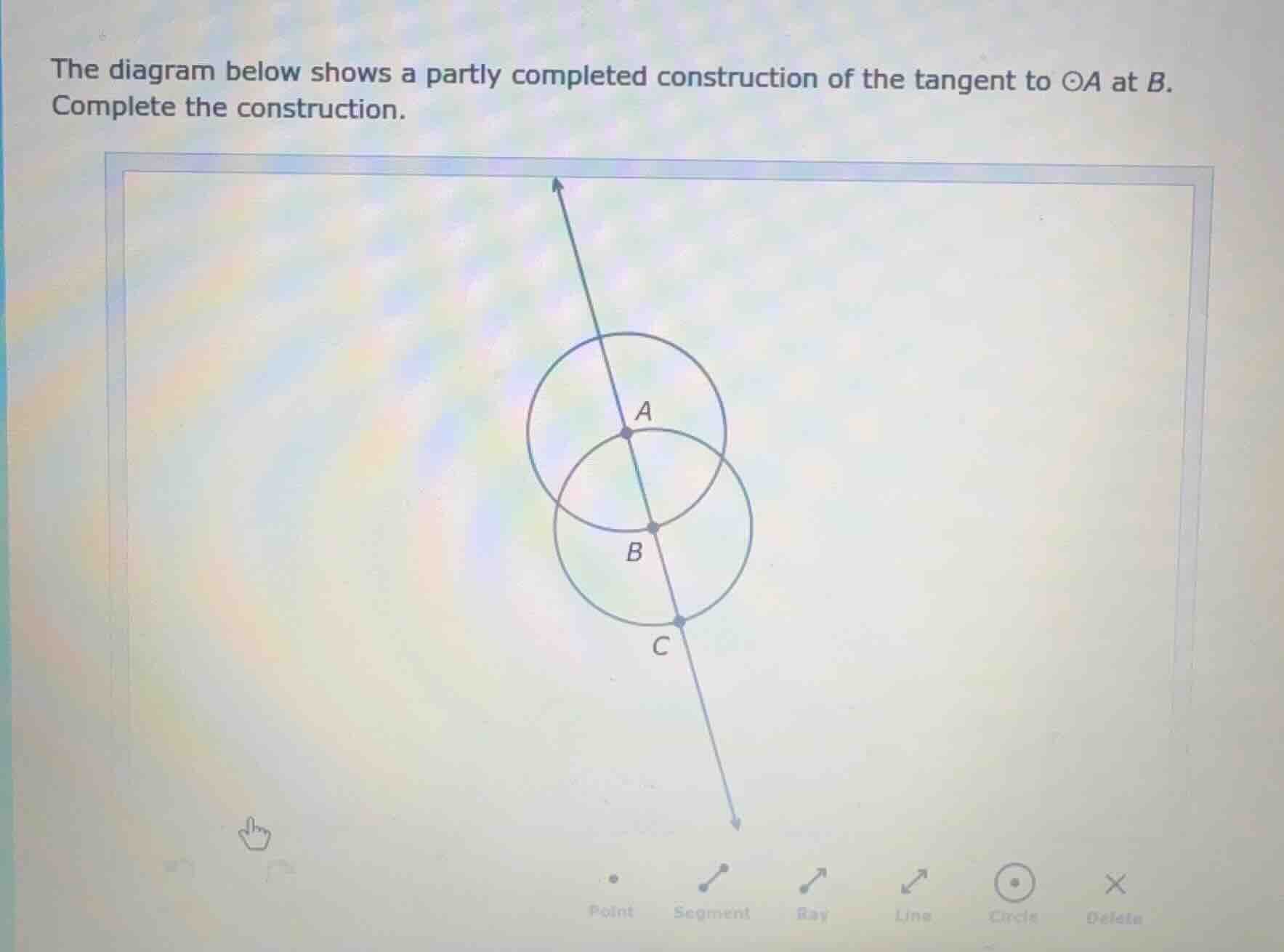

the diagram below shows a partly completed construction of the tangent to $\\odot a$ at $b$. complete the…

Explanation:

Step1: Identify the geometric goal

The goal is to construct a line tangent to circle $A$ at point $B$, which must be perpendicular to the radius $AB$.

Step2: Analyze the existing construction

A line passes through $A$ and $B$, and a circle centered at $B$ with radius $BA$ has been drawn, intersecting the line at point $C$. Thus, $B$ is the midpoint of segment $AC$.

Step3: Construct intersecting arcs

Set the compass to a width greater than $AB$. Place the compass at $A$ and draw an arc; then, using the same width, place the compass at $C$ and draw an arc that intersects the first arc at two points.

Step4: Draw the tangent line

Use a straightedge to draw a line through the two intersection points of the arcs. This line is the perpendicular bisector of $AC$ and passes through $B$.

Answer:

To complete the construction, draw two intersecting arcs of equal radius centered at points $A$ and $C$. Then, use the "Line" tool to draw a line through the two points where these arcs intersect. This line will pass through point $B$ and be perpendicular to the radius $AB$, forming the tangent to circle $A$ at $B$.
