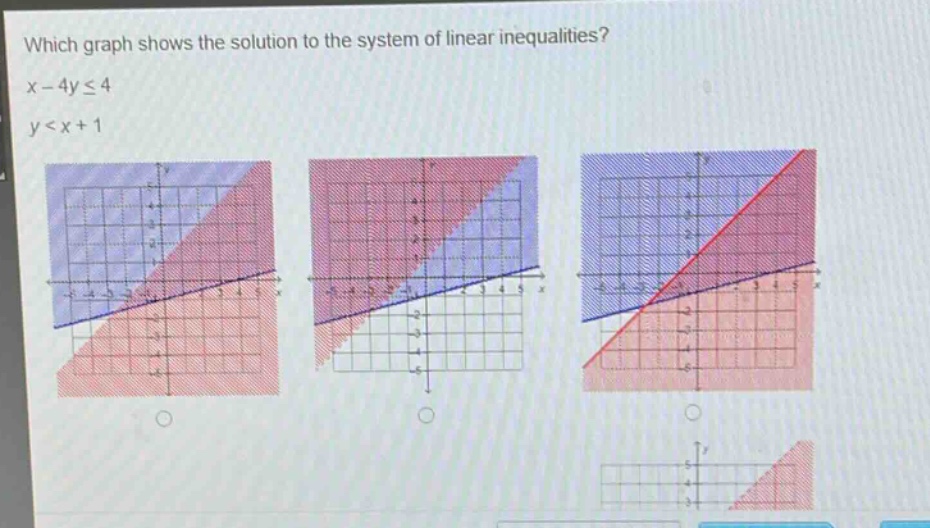

which graph shows the solution to the system of linear inequalities?\nx - 4y ≤ 4\ny < x + 1

which graph shows the solution to the system of linear inequalities?\nx - 4y ≤ 4\ny < x + 1

which graph shows the solution to the system of linear inequalities?\nx - 4y ≤ 4\ny < x + 1

Answer

Explanation:

Step1: Rewrite the first inequality

Rewrite $x - 4y\leq4$ in slope - intercept form $y\geq mx + b$. Subtract $x$ from both sides: $-4y\leq -x + 4$. Divide by $- 4$ and reverse the inequality sign: $y\geq\frac{1}{4}x - 1$. The boundary line is $y=\frac{1}{4}x - 1$ and the region above this line (including the line since it is $\geq$) is part of the solution.

Step2: Analyze the second inequality

The inequality $y\lt x + 1$ has a boundary line $y=x + 1$. The region below this line (since it is $\lt$) is part of the solution.

Step3: Find the intersection region

The solution to the system is the intersection of the regions defined by the two inequalities.

Answer:

The graph that has a solid line for $y=\frac{1}{4}x - 1$ with the region above it shaded, and a dashed line for $y=x + 1$ with the region below it shaded, and shows the intersection of these two shaded regions is the correct graph. Without specific labels on the given graphs, we can't identify it by name, but by these characteristics.
