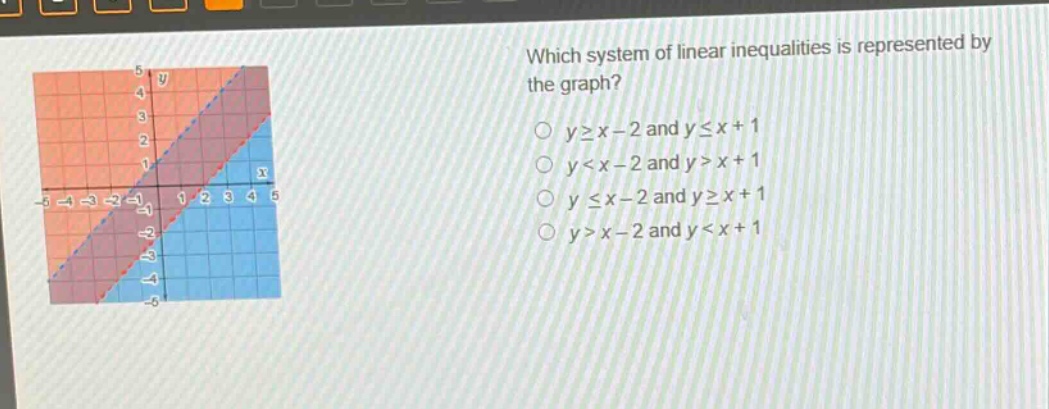

which system of linear inequalities is represented by the graph?\n○ y≥x - 2 and y≤x + 1\n○ y<x - 2 and y>x + 1\n○ y≤x - 2 and y≥x + 1\n○ y>x - 2 and y<x + 1

which system of linear inequalities is represented by the graph?\n○ y≥x - 2 and y≤x + 1\n○ y<x - 2 and y>x + 1\n○ y≤x - 2 and y≥x + 1\n○ y>x - 2 and y<x + 1

Answer

Explanation:

Step1: Analyze the line (y = x - 2)

The line (y=x - 2) has a slope of (1) and a (y) - intercept of (-2). The region above the dashed line (y=x - 2) is represented by (y>x - 2) (dashed line means the points on the line are not included).

Step2: Analyze the line (y=x + 1)

The line (y=x + 1) has a slope of (1) and a (y) - intercept of (1). The region below the dashed line (y=x + 1) is represented by (y<x + 1) (dashed line means the points on the line are not included).

Answer:

D. (y>x - 2) and (y<x + 1)
