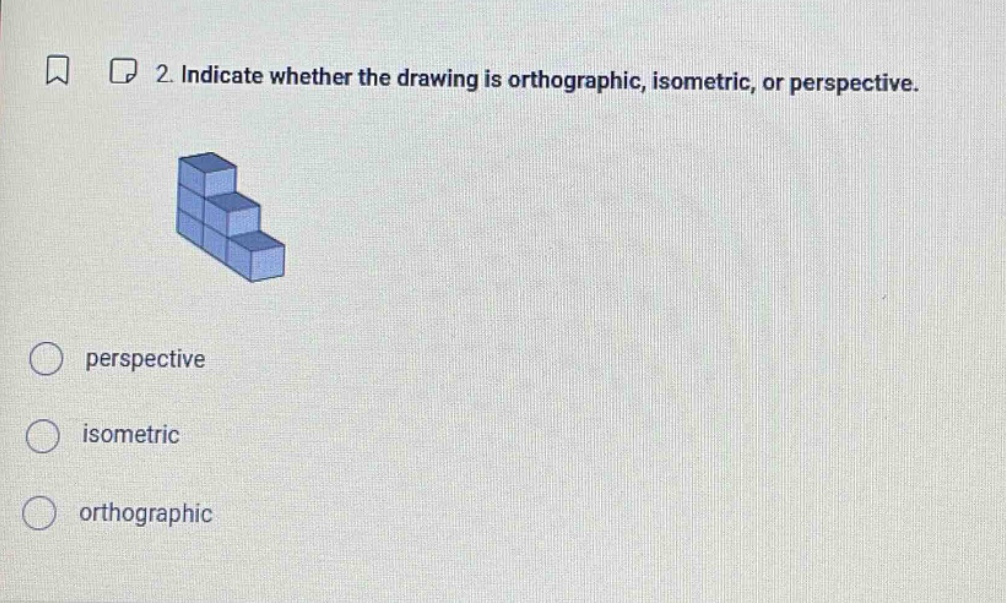

2. indicate whether the drawing is orthographic, isometric, or perspective. perspective isometric orthographic
2. indicate whether the drawing is orthographic, isometric, or perspective. perspective isometric orthographic
Answer
Brief Explanations:
Orthographic drawings show multiple 2 - D views of an object. Isometric drawings show a 3 - D view with equal scale along axes. Perspective drawings mimic how the human eye sees with foreshortening and vanishing points. The given drawing shows a 3 - D view with equal angles and no foreshortening or vanishing points, which is characteristic of isometric drawings.
Answer:
B. isometric
