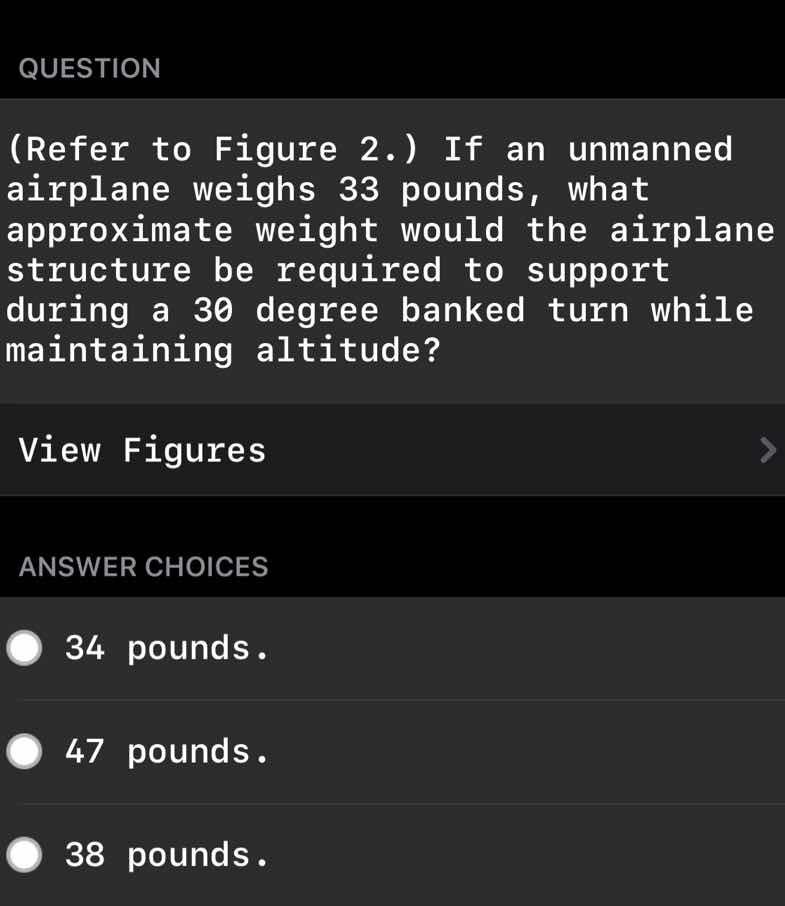

question\n(refer to figure 2.) if an unmanned airplane weighs 33 pounds, what approximate weight would the airplane structure be required to support during a 30 degree banked turn while maintaining altitude?\nview figures\nanswer choices\n34 pounds.\n47 pounds.\n38 pounds.

question\n(refer to figure 2.) if an unmanned airplane weighs 33 pounds, what approximate weight would the airplane structure be required to support during a 30 degree banked turn while maintaining altitude?\nview figures\nanswer choices\n34 pounds.\n47 pounds.\n38 pounds.

Answer

Explanation:

Step1: Find load factor for 30° bank

The load factor $n$ for a banked turn maintaining altitude is given by $n = \frac{1}{\cos\theta}$, where $\theta = 30^\circ$. $\cos(30^\circ) = \frac{\sqrt{3}}{2} \approx 0.866$ $n = \frac{1}{0.866} \approx 1.155$

Step2: Calculate structural load

Multiply the airplane weight by the load factor. $\text{Structural Load} = 33 \times 1.155 \approx 38.115$

Answer:

38 pounds.
