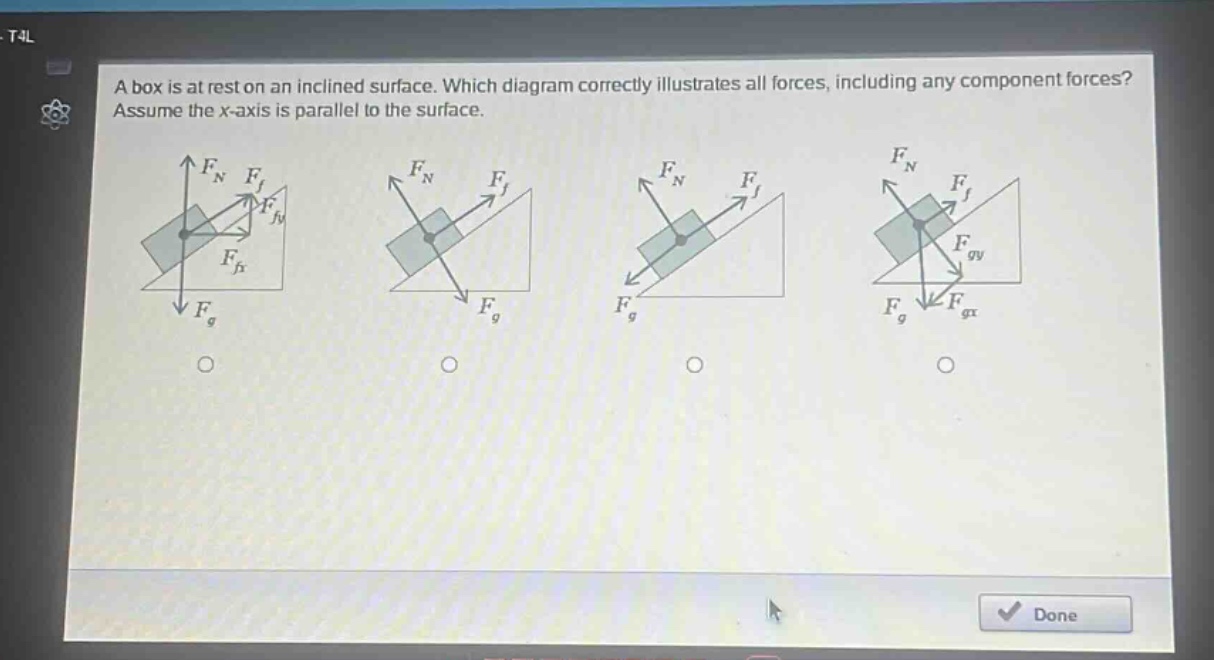

a box is at rest on an inclined surface. which diagram correctly illustrates all forces, including any…

Answer:

The fourth - diagram (with $F_{gx}$ and $F_{gy}$ components of the gravitational force $F_g$) is correct.

Explanation:

Step1: Identify forces on box

The box on inclined surface has gravitational force $F_g$, normal force $F_N$ and frictional force $F_f$.

Step2: Resolve gravitational force

Gravitational force $F_g$ needs to be resolved into components parallel ($F_{gx}$) and perpendicular ($F_{gy}$) to the inclined - surface as the x - axis is parallel to the surface.

Step3: Check diagrams

The first diagram has incorrect component forces of friction. The second and third diagrams do not resolve the gravitational force into components parallel and perpendicular to the surface. The fourth diagram correctly shows $F_N$ perpendicular to the surface, $F_f$ parallel to the surface and resolves $F_g$ into $F_{gx}$ and $F_{gy}$.
