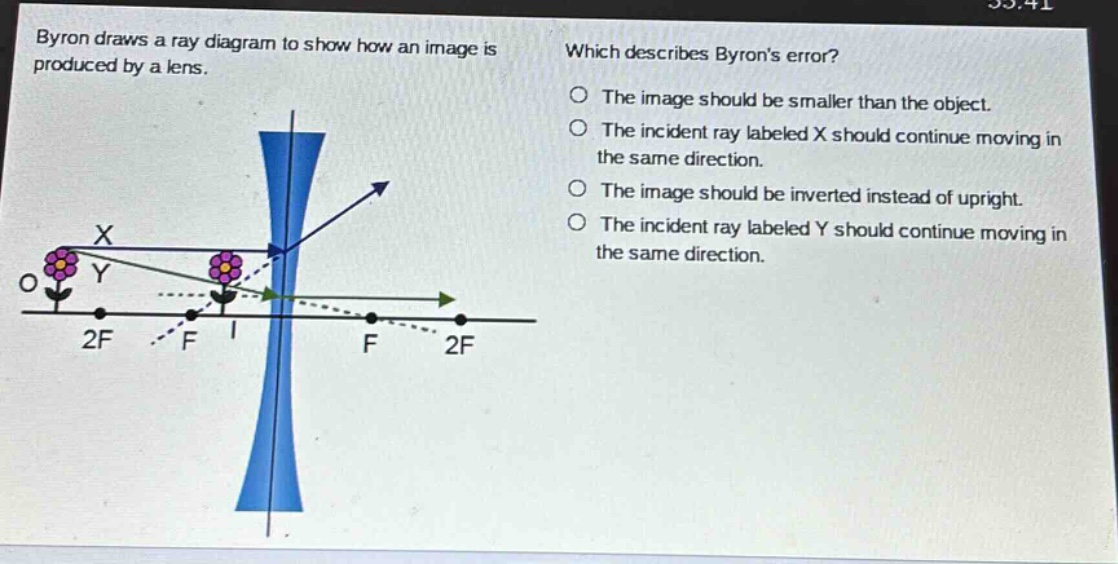

byron draws a ray diagram to show how an image is produced by a lens. which describes byrons error? the…
byron draws a ray diagram to show how an image is produced by a lens. which describes byrons error? the image should be smaller than the object. the incident ray labeled x should continue moving in the same direction. the image should be inverted instead of upright. the incident ray labeled y should continue moving in the same direction.
Answer
Explanation:
Step1: Recall ray - tracing rules for concave lens
For a concave lens, a ray parallel to the principal axis (like ray X) should refract away from the principal axis after passing through the lens. A ray passing through the optical center (like ray Y) should continue in a straight - line without deviation.
Step2: Analyze each option
- Option 1: Image size depends on object distance and focal length, not a fixed error here.
- Option 2: Ray X is a parallel ray to the principal axis and should refract, not continue in the same direction.
- Option 3: For a concave lens with an object outside the focal point, the image is upright, so this is not an error.
- Option 4: Ray Y passing through the optical center should continue in the same direction, which is correct in the diagram.
