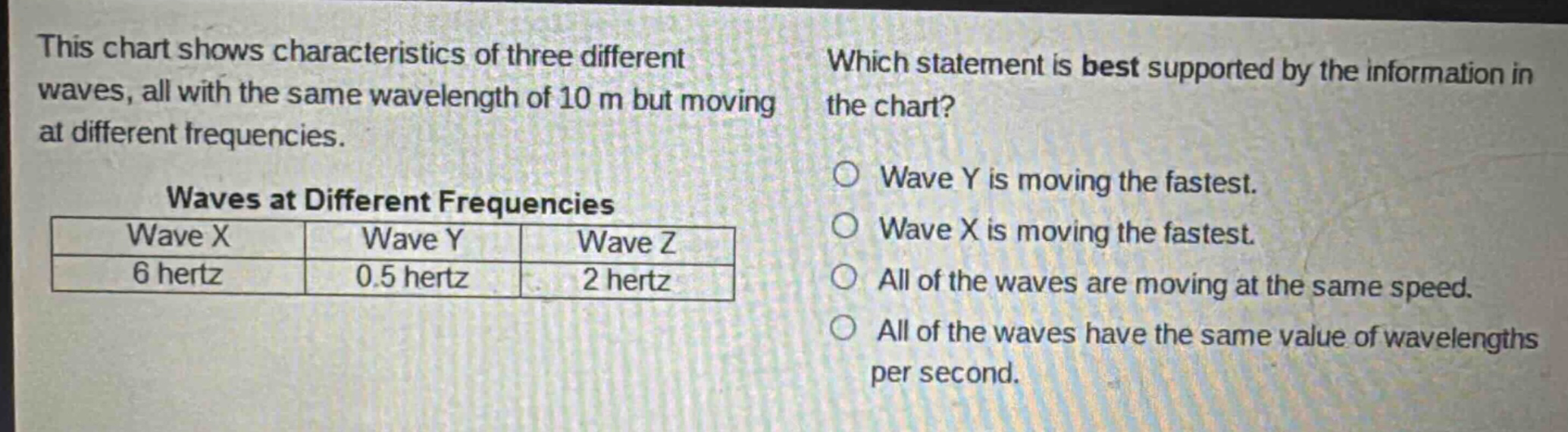

this chart shows characteristics of three different waves, all with the same wavelength of 10 m but moving…

this chart shows characteristics of three different waves, all with the same wavelength of 10 m but moving at different frequencies. waves at different frequencies wave x 6 hertz wave y 0.5 hertz wave z 2 hertz which statement is best supported by the information in the chart? wave y is moving the fastest. wave x is moving the fastest. all of the waves are moving at the same speed. all of the waves have the same value of wavelengths per second.

this chart shows characteristics of three different waves, all with the same wavelength of 10 m but moving at different frequencies. waves at different frequencies wave x 6 hertz wave y 0.5 hertz wave z 2 hertz which statement is best supported by the information in the chart? wave y is moving the fastest. wave x is moving the fastest. all of the waves are moving at the same speed. all of the waves have the same value of wavelengths per second.

Answer

Explanation:

Step1: Recall wave - speed formula

The speed of a wave is given by $v = f\lambda$, where $v$ is the speed, $f$ is the frequency, and $\lambda$ is the wavelength.

Step2: Calculate speeds for each wave

For Wave X: $\lambda = 10$ m and $f_X=6$ Hz, so $v_X=f_X\lambda=6\times10 = 60$ m/s. For Wave Y: $\lambda = 10$ m and $f_Y = 0.5$ Hz, so $v_Y=f_Y\lambda=0.5\times10=5$ m/s. For Wave Z: $\lambda = 10$ m and $f_Z = 2$ Hz, so $v_Z=f_Z\lambda=2\times10 = 20$ m/s.

Step3: Analyze the results

Wave X has the highest speed among the three waves.

Answer:

Wave X is moving the fastest.
