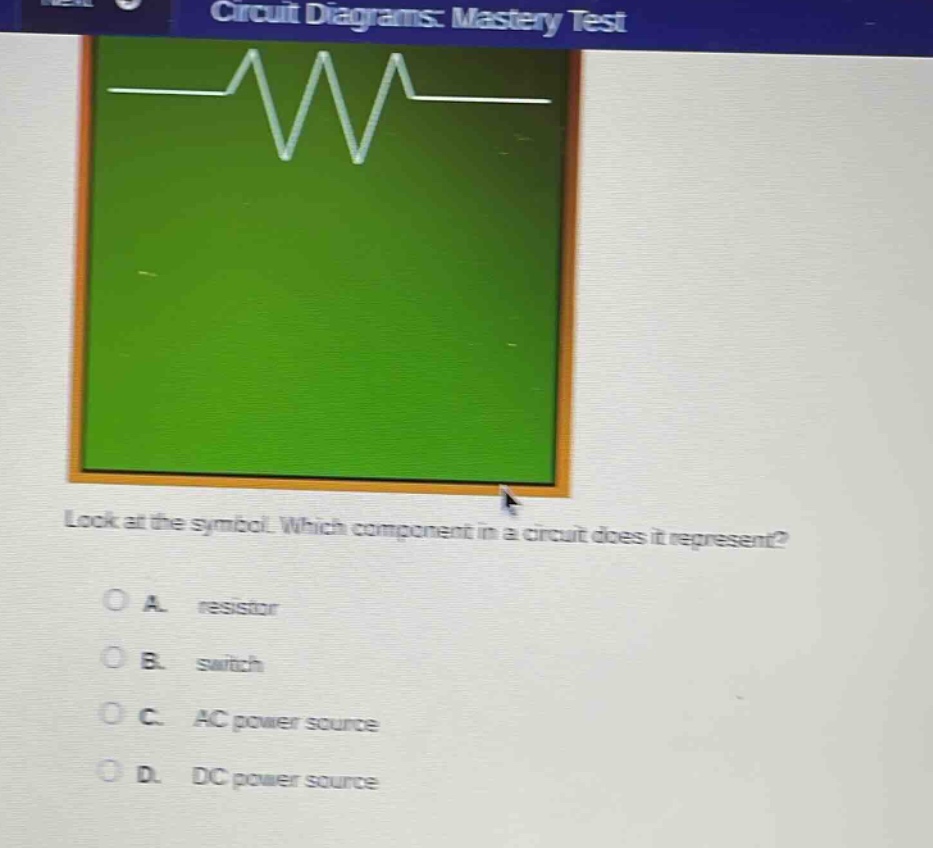

circuit diagrams: mastery test\nlook at the symbol. which component in a circuit does it represent?\na…
circuit diagrams: mastery test\nlook at the symbol. which component in a circuit does it represent?\na. resistor\nb. switch\nc. ac power source\nd. dc power source
Answer
Brief Explanations:
In circuit diagrams, the zig - zag symbol represents a resistor. A switch is usually represented by a break in the line with a lever - like component, an AC power source has a wavy line symbol, and a DC power source has a symbol with short and long parallel lines.
Answer:
A. resistor
