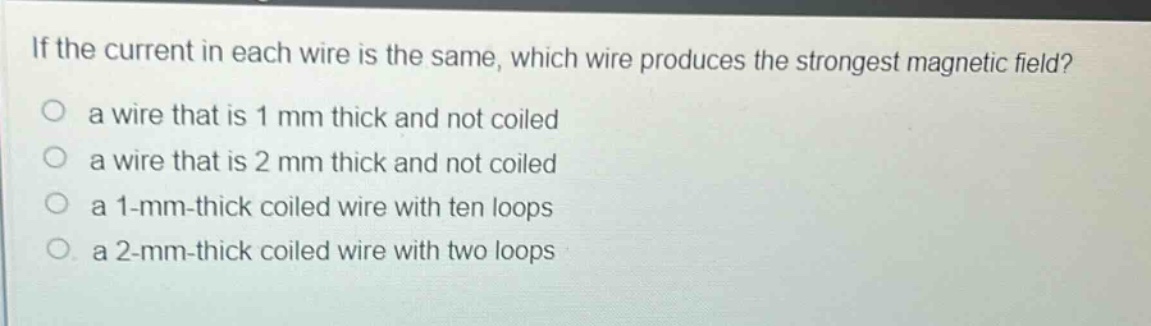

if the current in each wire is the same, which wire produces the strongest magnetic field?\no a wire that is…

Explanation:

Step1: Recall magnetic - field formula for wires

The magnetic field produced by a current - carrying wire is enhanced when the wire is coiled. The magnetic field of a solenoid (coiled wire) is given by $B = \mu_0nI$, where $n$ is the number of turns per unit length, $I$ is the current, and $\mu_0$ is the permeability of free space. For a non - coiled wire, the magnetic field at a distance $r$ from a long straight wire is $B=\frac{\mu_0I}{2\pi r}$. Coiling the wire increases the magnetic field.

Step2: Compare the coiled and non - coiled wires

Among the given options, the non - coiled wires (first two options) will produce a weaker magnetic field compared to the coiled wires (last two options) because coiling the wire effectively increases the magnetic field due to the superposition of the magnetic fields of each loop.

Step3: Compare the coiled wires

For coiled wires, the magnetic field is proportional to the number of loops. The 1 - mm - thick coiled wire has ten loops and the 2 - mm - thick coiled wire has two loops. Since the magnetic field is proportional to the number of loops ($B\propto n$), the wire with more loops will produce a stronger magnetic field.

Answer:

a 1 - mm - thick coiled wire with ten loops
