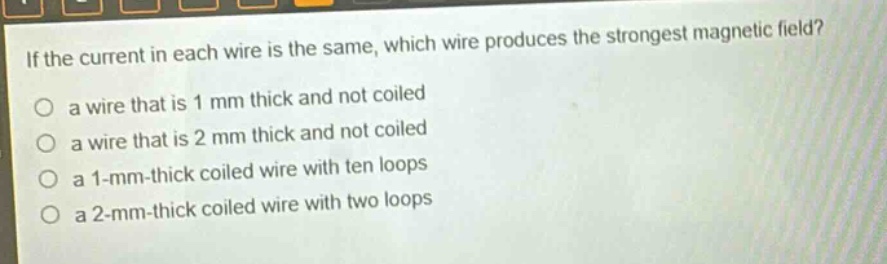

if the current in each wire is the same, which wire produces the strongest magnetic field?\no a wire that is…

Explanation:

Step1: Recall magnetic - field formula for a wire

The magnetic field due to a current - carrying wire is affected by the current ($I$), the number of loops ($N$) in a coil, and the thickness (radius $r$) has a secondary effect. The magnetic field at the center of a circular loop of wire is given by $B = \frac{\mu_0NI}{2r}$, where $\mu_0$ is the permeability of free space. For a straight wire, the magnetic field is $B=\frac{\mu_0I}{2\pi r}$. Coiling a wire increases the magnetic field because the magnetic fields of each loop add up.

Step2: Analyze each option

• Option 1: A 1 - mm thick non - coiled wire has only the magnetic field of a straight wire.
• Option 2: A 2 - mm thick non - coiled wire also has the magnetic field of a straight wire. Thicker wire (larger radius) has a weaker magnetic field for a straight wire according to $B=\frac{\mu_0I}{2\pi r}$.
• Option 3: A 1 - mm thick coiled wire with ten loops. The coiling (multiple loops) increases the magnetic field compared to a non - coiled wire.
• Option 4: A 2 - mm thick coiled wire with two loops. Although it is coiled, the number of loops ($N = 2$) is less than the ten - loop coiled wire in Option 3.

Step3: Compare and determine the strongest magnetic field

The magnetic field of a coiled wire is proportional to the number of loops $N$. Since the 1 - mm thick coiled wire with ten loops has the highest number of loops among the options, it will produce the strongest magnetic field.

Answer:

a 1 - mm - thick coiled wire with ten loops
