diagram 1 diagram 2 which of the following depictions correctly describes the flow of heat? both diagrams…

diagram 1 diagram 2 which of the following depictions correctly describes the flow of heat? both diagrams are incorrect. diagram 2 diagram 1

diagram 1 diagram 2 which of the following depictions correctly describes the flow of heat? both diagrams are incorrect. diagram 2 diagram 1

Answer

Explanation:

Step1: Recall heat - flow principle

Heat always flows from a region of higher temperature to a region of lower temperature.

Step2: Analyze the diagrams

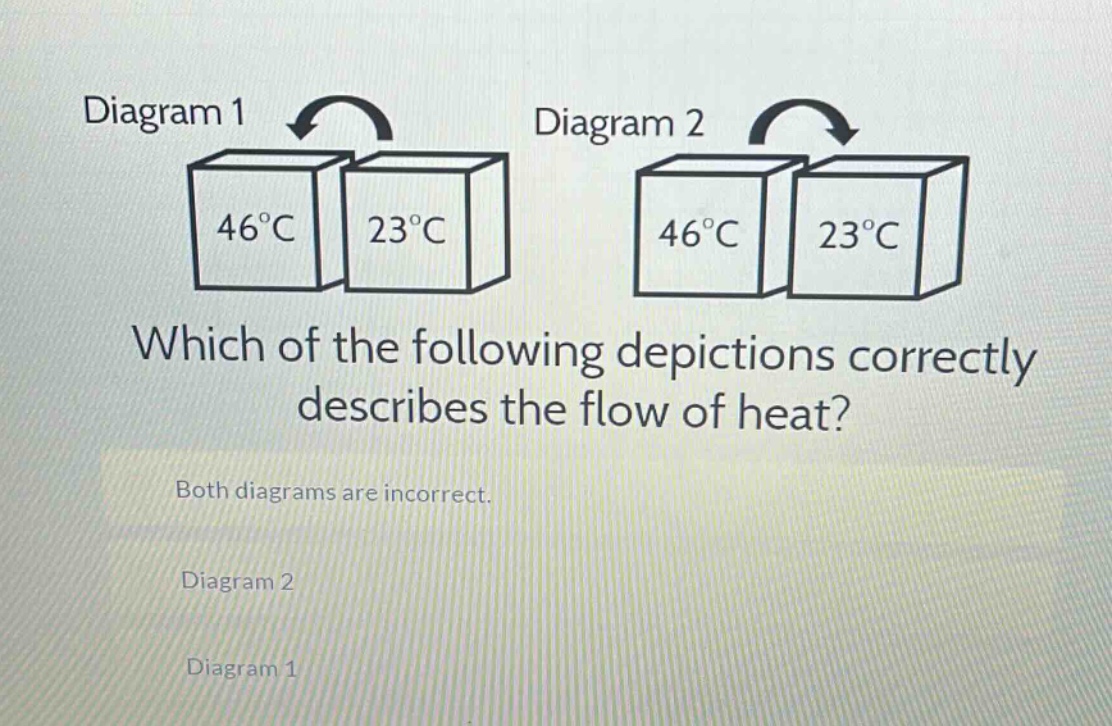

In Diagram 1, heat is shown flowing from the box at $46^{\circ}C$ (higher temperature) to the box at $23^{\circ}C$ (lower temperature). In Diagram 2, the direction of heat - flow is opposite.

Answer:

Diagram 1
