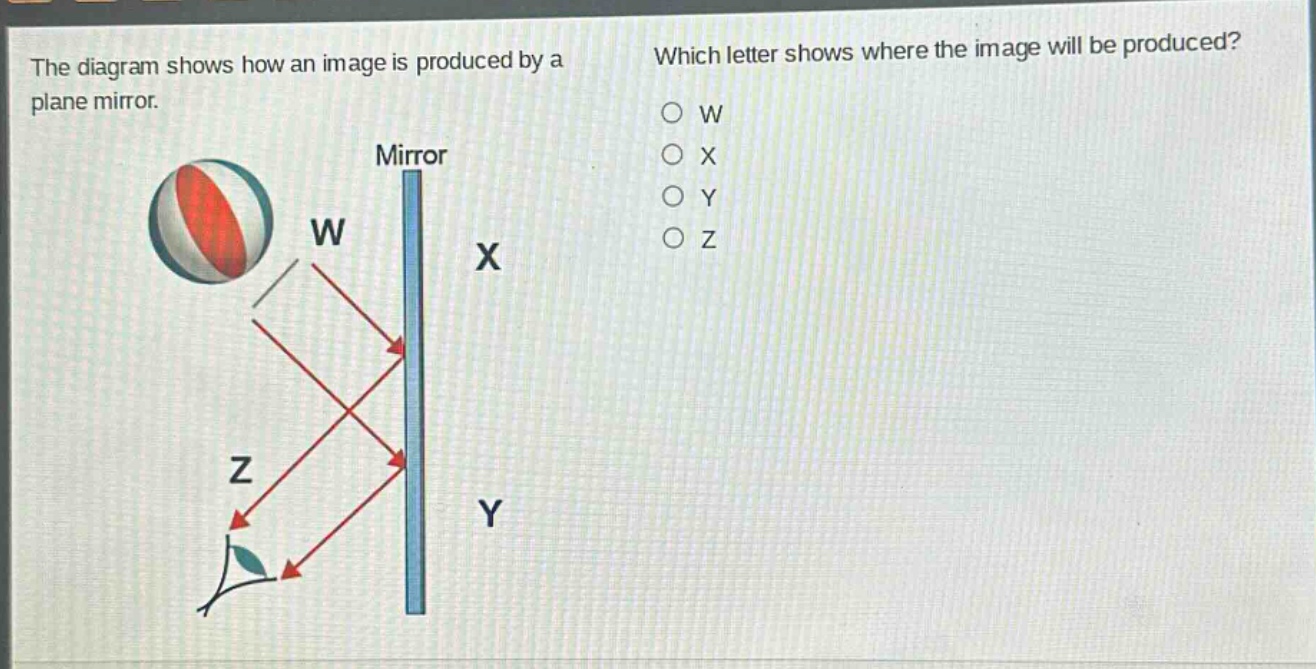

the diagram shows how an image is produced by a plane mirror. which letter shows where the image will be…
the diagram shows how an image is produced by a plane mirror. which letter shows where the image will be produced? o w o x o y o z
Answer
Explanation:
Step1: Recall plane - mirror image property
In a plane - mirror, the image is formed behind the mirror at the same distance as the object is in front of the mirror. The image is virtual and has the same size as the object.
Step2: Analyze the diagram
The object is in front of the mirror. The image will be formed on the other side of the mirror at the same distance from the mirror as the object. Looking at the diagram, the image will be formed at the position corresponding to the point behind the mirror relative to the object's position. Point X is behind the mirror and is at the correct position for the image formation according to the laws of reflection for a plane - mirror.
Answer:
X
