the diagram shows a setup for inducing a current in a wire. which change would cause the needle on the…

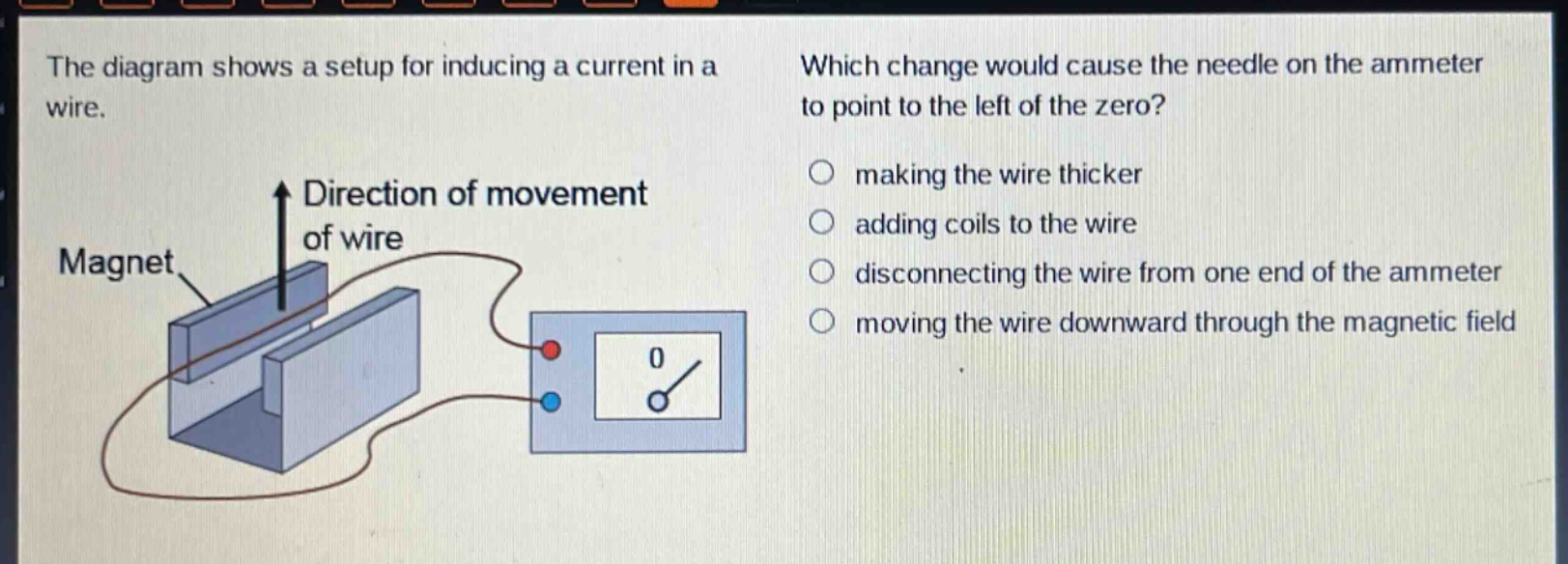

the diagram shows a setup for inducing a current in a wire. which change would cause the needle on the ammeter to point to the left of the zero? direction of movement of wire magnet making the wire thicker adding coils to the wire disconnecting the wire from one end of the ammeter moving the wire downward through the magnetic field

the diagram shows a setup for inducing a current in a wire. which change would cause the needle on the ammeter to point to the left of the zero? direction of movement of wire magnet making the wire thicker adding coils to the wire disconnecting the wire from one end of the ammeter moving the wire downward through the magnetic field

Answer

Explanation:

Step1: Recall electromagnetic - induction principles

The direction of the induced current in electromagnetic induction is determined by factors like the direction of the magnetic field and the motion of the conductor. Changing the direction of the motion of the wire through the magnetic field changes the direction of the induced current.

Step2: Analyze each option

  • Making the wire thicker changes its resistance but not the direction of the induced current.
  • Adding coils to the wire changes the magnitude of the induced emf and current but not the direction.
  • Disconnecting the wire from one - end of the ammeter breaks the circuit and no current flows, not changing the direction of the current when the circuit is complete.
  • Moving the wire downward (opposite to the original upward motion) through the magnetic field will reverse the direction of the induced current, causing the ammeter needle to point to the left of zero.

Answer:

moving the wire downward through the magnetic field
