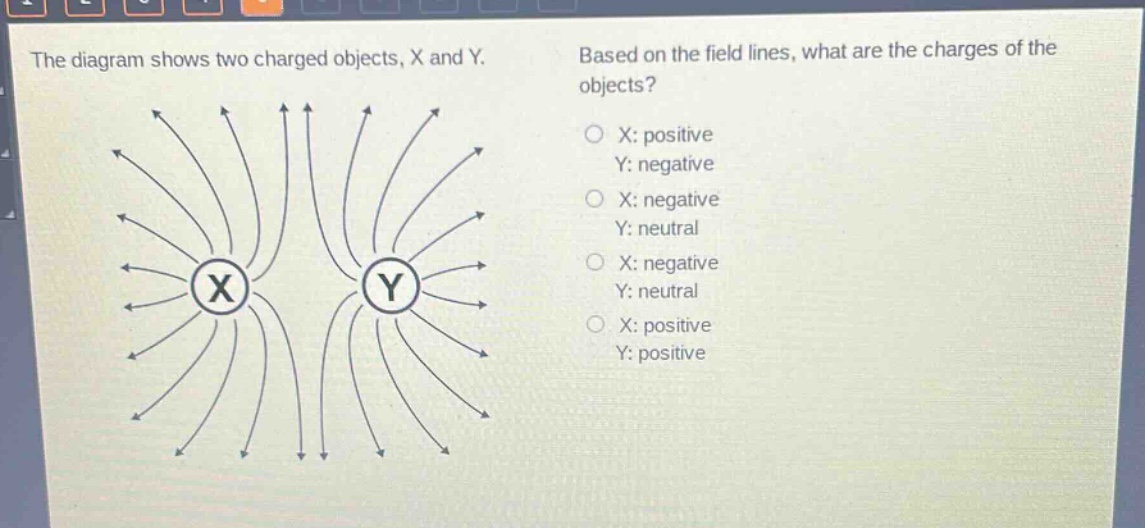

the diagram shows two charged objects, x and y. based on the field lines, what are the charges of the…

the diagram shows two charged objects, x and y. based on the field lines, what are the charges of the objects? x: positive y: negative x: negative y: neutral x: negative y: neutral x: positive y: positive

the diagram shows two charged objects, x and y. based on the field lines, what are the charges of the objects? x: positive y: negative x: negative y: neutral x: negative y: neutral x: positive y: positive

Answer

Brief Explanations:

Electric field lines are a visual representation of electric fields. By convention:

  1. Electric field lines originate from positive charges and point radially outward.
  2. Electric field lines terminate on negative charges and point radially inward.
  3. The density of field lines indicates the strength of the electric field.

In the given diagram:

  • For object X, the electric field lines are shown originating from X and pointing outwards. This indicates that object X has a positive charge.
  • For object Y, the electric field lines are also shown originating from Y and pointing outwards. This indicates that object Y also has a positive charge. The field lines between X and Y are shown repelling each other, which is consistent with two like charges.

Answer:

X: positive Y: positive
