the diagrams represent bulb brightness using starbursts and current using arrowtails. give attention to the…

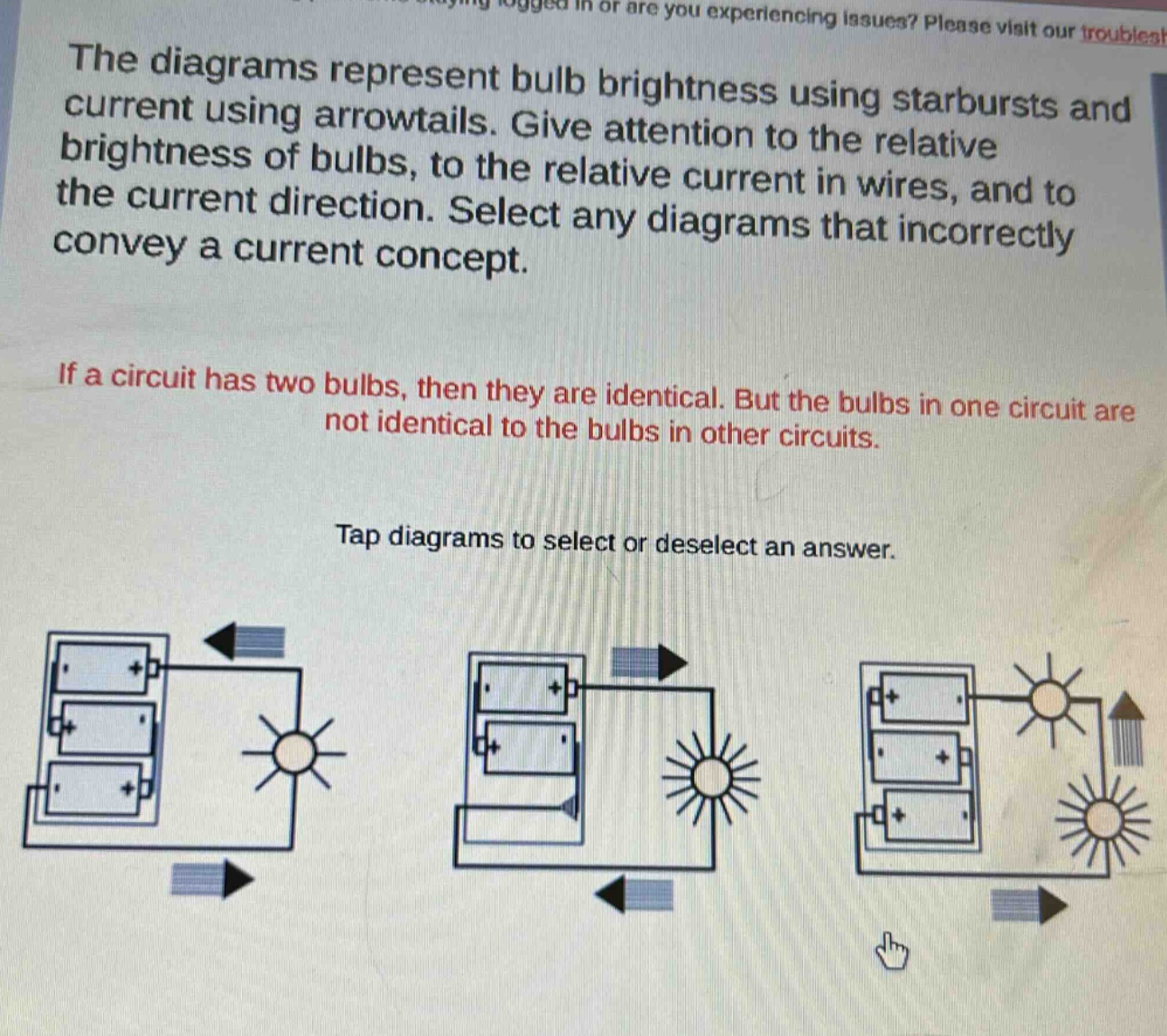

the diagrams represent bulb brightness using starbursts and current using arrowtails. give attention to the relative brightness of bulbs, to the relative current in wires, and to the current direction. select any diagrams that incorrectly convey a current concept.\n\nif a circuit has two bulbs, then they are identical. but the bulbs in one circuit are not identical to the bulbs in other circuits.\n\ntap diagrams to select or deselect an answer.

the diagrams represent bulb brightness using starbursts and current using arrowtails. give attention to the relative brightness of bulbs, to the relative current in wires, and to the current direction. select any diagrams that incorrectly convey a current concept.\n\nif a circuit has two bulbs, then they are identical. but the bulbs in one circuit are not identical to the bulbs in other circuits.\n\ntap diagrams to select or deselect an answer.

Answer

Explanation:

Step1: Recall current - brightness relationship

In a circuit, for identical bulbs, more current means more brightness. Also, current flows from the positive terminal of the battery to the negative terminal.

Step2: Analyze first diagram

The current arrow is pointing towards the negative terminal of the battery which is incorrect as current should flow out of the positive terminal.

Step3: Analyze second diagram

The current arrow is pointing out of the positive terminal of the battery and the brighter bulb has a larger arrow - tail indicating more current which is correct.

Step4: Analyze third diagram

The current arrows are inconsistent. The arrow near the battery is correct (out of positive terminal) but the arrow between the bulbs seems to be in a wrong direction considering the overall circuit flow and the brightness - current relationship.

Answer:

The first and third diagrams incorrectly convey a current concept.
