in the diagrams, the solid green line represents earths rotational axis and the dashed red line represents…

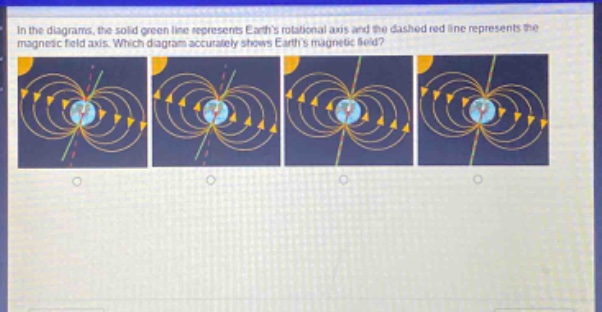

in the diagrams, the solid green line represents earths rotational axis and the dashed red line represents the magnetic field axis. which diagram accurately shows earths magnetic field?

in the diagrams, the solid green line represents earths rotational axis and the dashed red line represents the magnetic field axis. which diagram accurately shows earths magnetic field?

Answer

Brief Explanation:

Earth's magnetic field axis is tilted with respect to its rotational axis. The magnetic field lines emerge from the south - magnetic pole and enter the north - magnetic pole. The magnetic field has a general dipole - like structure around the Earth.

Answer:

The diagram that shows the magnetic field axis (dashed red line) tilted with respect to the rotational axis (solid green line) and has magnetic field lines emerging from the south - magnetic region and entering the north - magnetic region accurately represents Earth's magnetic field. Without specific labels on the diagrams, it's not possible to identify a specific one by name, but the correct one follows the above - described characteristics.
