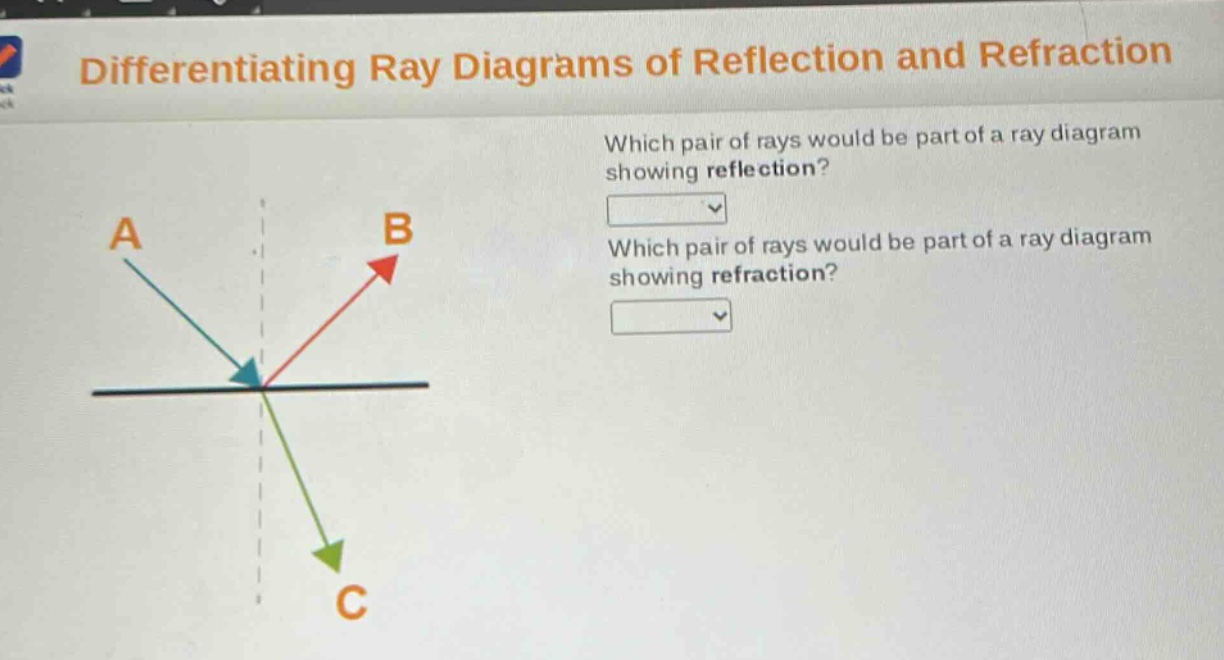

differentiating ray diagrams of reflection and refraction\nwhich pair of rays would be part of a ray diagram…
differentiating ray diagrams of reflection and refraction\nwhich pair of rays would be part of a ray diagram showing reflection?\nwhich pair of rays would be part of a ray diagram showing refraction?
Answer
Explanation:
Step1: Recall reflection property
In reflection, the incident ray and the reflected ray are in the same medium and on the same side of the normal. Ray A is the incident ray and ray B is the reflected ray as they follow the law of reflection (angle of incidence = angle of reflection) and are in the same medium on the same - side of the normal.
Step2: Recall refraction property
In refraction, the incident ray and the refracted ray are in different media and on the opposite sides of the normal. Ray A is the incident ray and ray C is the refracted ray as the ray changes direction when passing from one medium to another.
Answer:
Which pair of rays would be part of a ray diagram showing reflection? A and B Which pair of rays would be part of a ray diagram showing refraction? A and C
