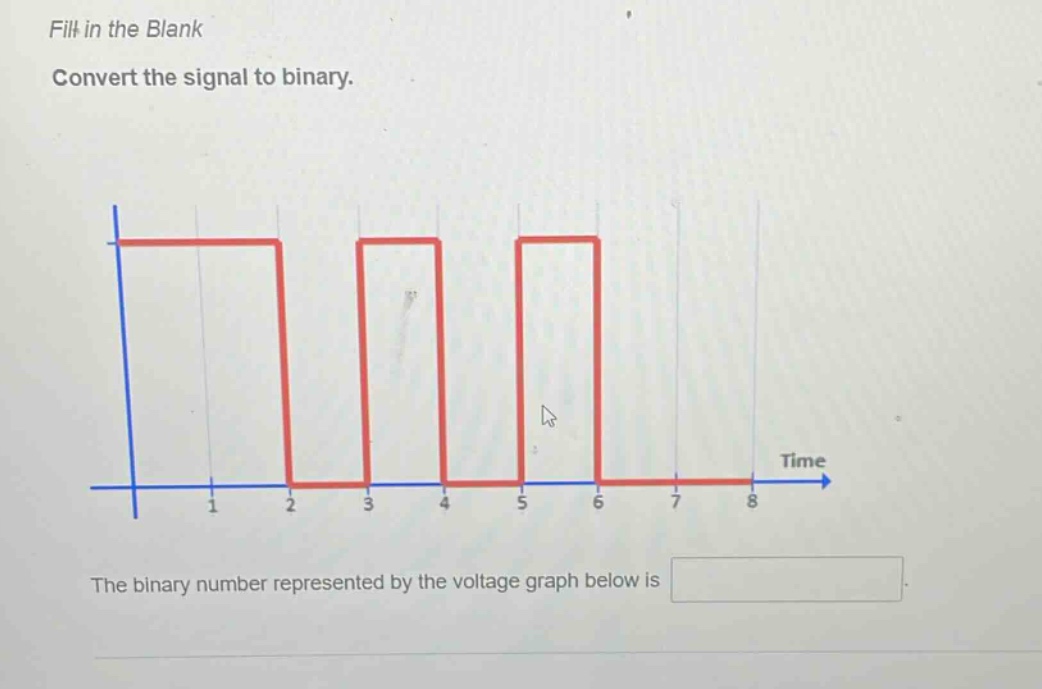

fill in the blank\nconvert the signal to binary.\nthe binary number represented by the voltage graph below is

Explanation:

Step1: Define binary - high and low

In binary, a high - voltage level represents 1 and a low - voltage level represents 0.

Step2: Analyze each time interval

From time 0 - 2, the voltage is high, so the first bit is 1. From time 2 - 3, the voltage is low, so the second bit is 0. From time 3 - 4, the voltage is high, so the third bit is 1. From time 4 - 5, the voltage is low, so the fourth bit is 0. From time 5 - 6, the voltage is high, so the fifth bit is 1. From time 6 - 8, the voltage is low, so the sixth and seventh bits are 0.

Answer:

1010100
