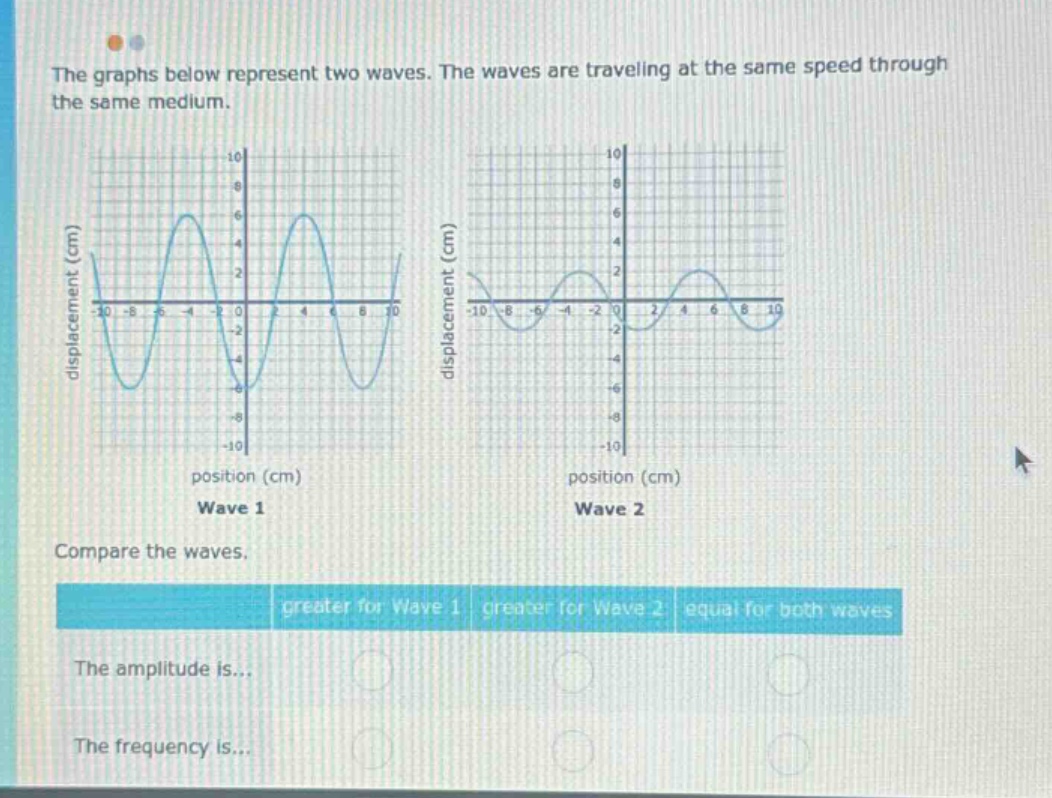

the graphs below represent two waves. the waves are traveling at the same speed through the same medium…

Explanation:

Step1: Define amplitude

Amplitude is the maximum displacement from equilibrium. For Wave 1, the maximum displacement is 6 cm. For Wave 2, the maximum displacement is 2 cm.

Step2: Compare amplitudes

Since 6 cm > 2 cm, the amplitude is greater for Wave 1.

Step3: Define frequency

Frequency is the number of complete - cycles per unit distance (or time). In the given position - displacement graphs, over the same position range, Wave 1 has 1.5 cycles and Wave 2 has 3 cycles.

Step4: Compare frequencies

Since 3>1.5, the frequency is greater for Wave 2.

Answer:

The amplitude is... greater for Wave 1 The frequency is... greater for Wave 2
