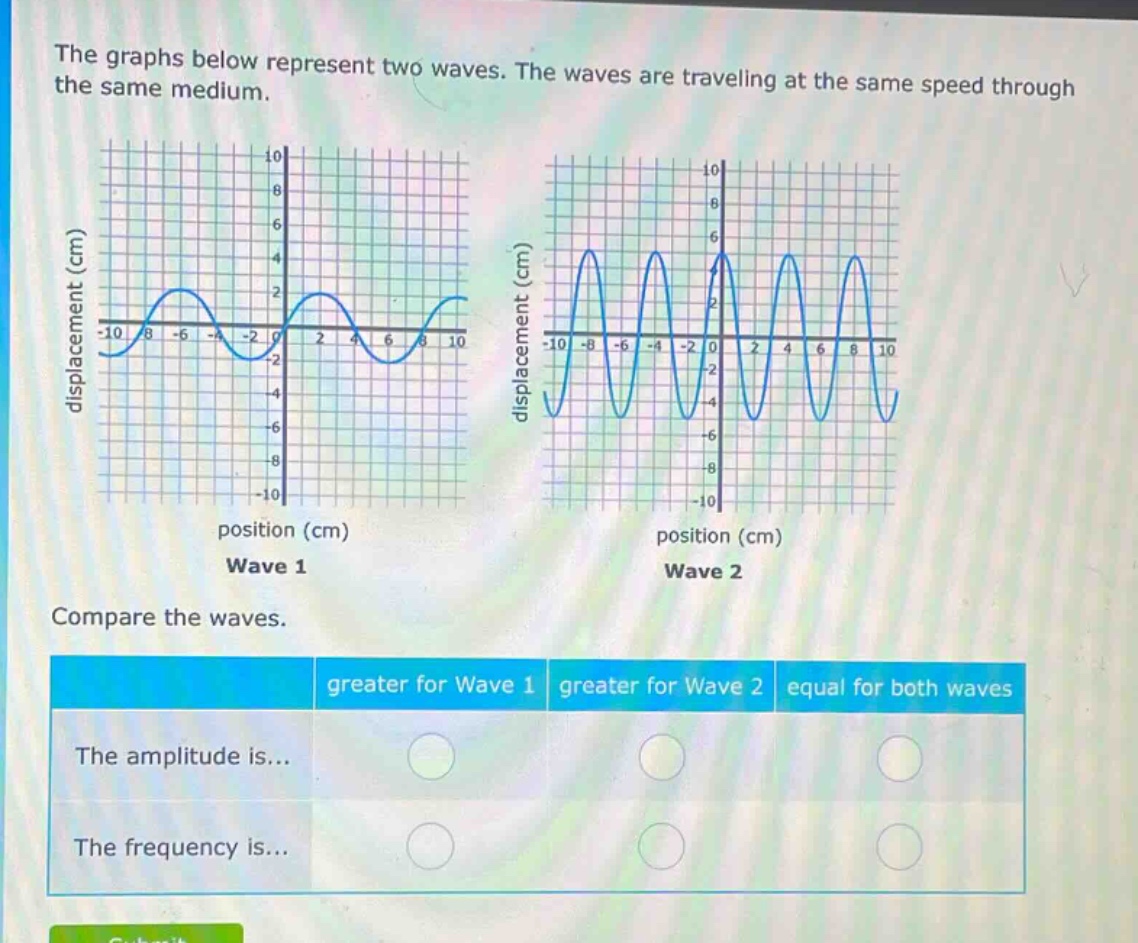

the graphs below represent two waves. the waves are traveling at the same speed through the same medium…

the graphs below represent two waves. the waves are traveling at the same speed through the same medium. compare the waves. the amplitude is... greater for wave 1 greater for wave 2 equal for both waves the frequency is... greater for wave 1 greater for wave 2 equal for both waves

the graphs below represent two waves. the waves are traveling at the same speed through the same medium. compare the waves. the amplitude is... greater for wave 1 greater for wave 2 equal for both waves the frequency is... greater for wave 1 greater for wave 2 equal for both waves

Answer

Explanation:

Step1: Define amplitude

Amplitude is the maximum displacement from the equilibrium position. For Wave 1, the maximum displacement is 2 cm. For Wave 2, the maximum displacement is 6 cm.

Step2: Compare amplitudes

Since 2 cm < 6 cm, the amplitude is greater for Wave 2.

Step3: Define frequency

Frequency is the number of complete - waves in a given distance. In a fixed horizontal distance, Wave 1 has 1 complete wave and Wave 2 has 3 complete waves.

Step4: Compare frequencies

Since 1 < 3, the frequency is greater for Wave 2.

Answer:

The amplitude is... greater for Wave 2 The frequency is... greater for Wave 2
