interpreting circuit diagrams\nuse the diagram and drop - down menus to answer each question.\nwhich circuit…

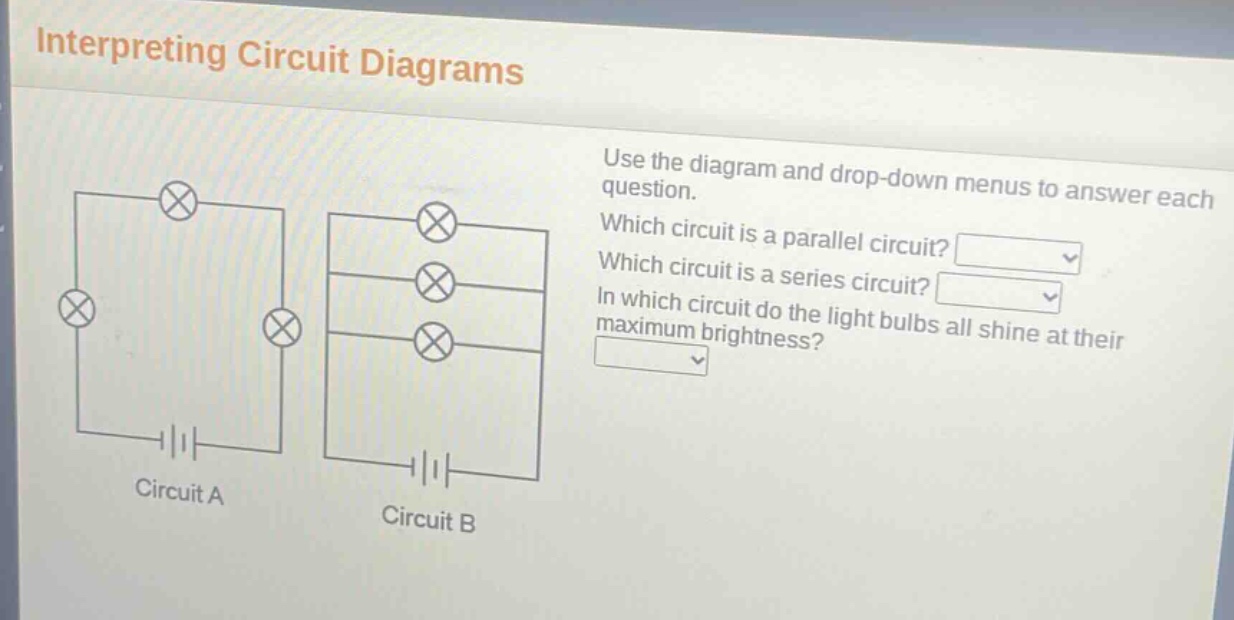

interpreting circuit diagrams\nuse the diagram and drop - down menus to answer each question.\nwhich circuit is a parallel circuit?\nwhich circuit is a series circuit?\nin which circuit do the light bulbs all shine at their maximum brightness?\ncircuit a\ncircuit b

interpreting circuit diagrams\nuse the diagram and drop - down menus to answer each question.\nwhich circuit is a parallel circuit?\nwhich circuit is a series circuit?\nin which circuit do the light bulbs all shine at their maximum brightness?\ncircuit a\ncircuit b

Answer

Explanation:

Step1: Recall circuit - type definitions

In a series circuit, components are connected end - to - end in a single path for current flow. In a parallel circuit, components are connected across common points, creating multiple paths for current flow.

Step2: Identify circuit types

Circuit A has the light bulbs connected end - to - end in a single loop, so it is a series circuit. Circuit B has the light bulbs connected across common points with multiple paths for current, so it is a parallel circuit.

Step3: Analyze bulb brightness

In a parallel circuit, each bulb has the full voltage of the source across it. In a series circuit, the voltage is divided among the bulbs. So, the bulbs in a parallel circuit shine at their maximum brightness.

Answer:

Which circuit is a parallel circuit? Circuit B Which circuit is a series circuit? Circuit A In which circuit do the light bulbs all shine at their maximum brightness? Circuit B
