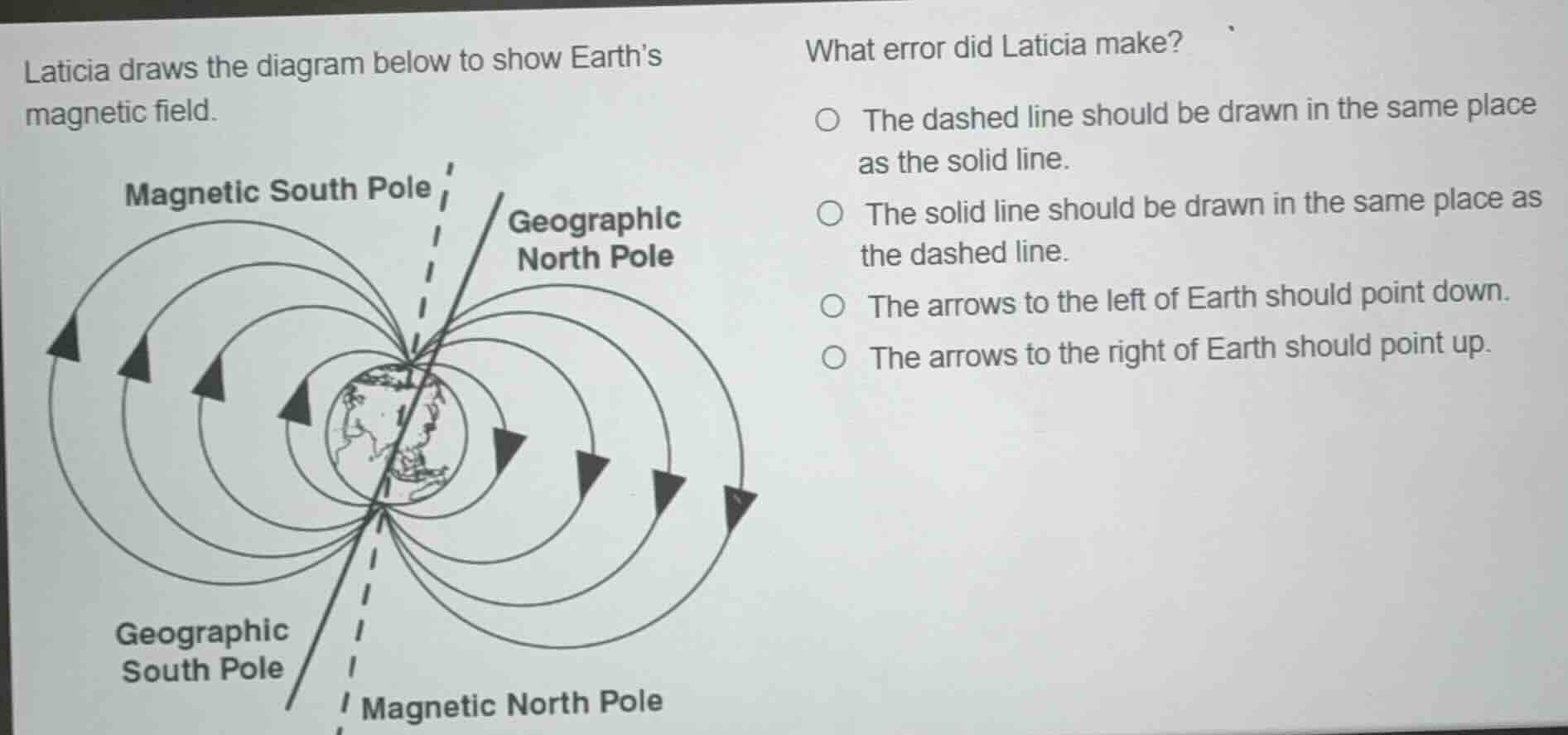

laticia draws the diagram below to show earths magnetic field.\nwhat error did laticia make?\n- the dashed line should be drawn in the same place as the solid line.\n- the solid line should be drawn in the same place as the dashed line.\n- the arrows to the left of earth should point down.\n- the arrows to the right of earth should point up.

laticia draws the diagram below to show earths magnetic field.\nwhat error did laticia make?\n- the dashed line should be drawn in the same place as the solid line.\n- the solid line should be drawn in the same place as the dashed line.\n- the arrows to the left of earth should point down.\n- the arrows to the right of earth should point up.

Answer

Explanation:

Step1: Identify magnetic field direction

Magnetic field lines emerge from the magnetic north pole and enter the magnetic south pole.

Step2: Analyze the diagram's arrows

The diagram shows arrows emerging from the top (Magnetic South) and entering the bottom (Magnetic North).

Step3: Determine the error

Since lines must exit the North and enter the South, the arrows on both sides are reversed.

Step4: Evaluate the options

The arrows to the left currently point up; they should point down to enter the Magnetic North Pole.

Answer:

The arrows to the left of Earth should point down.
