look carefully at the diagrams and choose the one that represents a generator.
look carefully at the diagrams and choose the one that represents a generator.
Answer
Brief Explanations:
A generator is a device that converts mechanical energy into electrical energy. This is typically achieved by rotating a coil of wire within a magnetic field, or rotating a magnet near a stationary coil. This process induces an electric current in the coil.

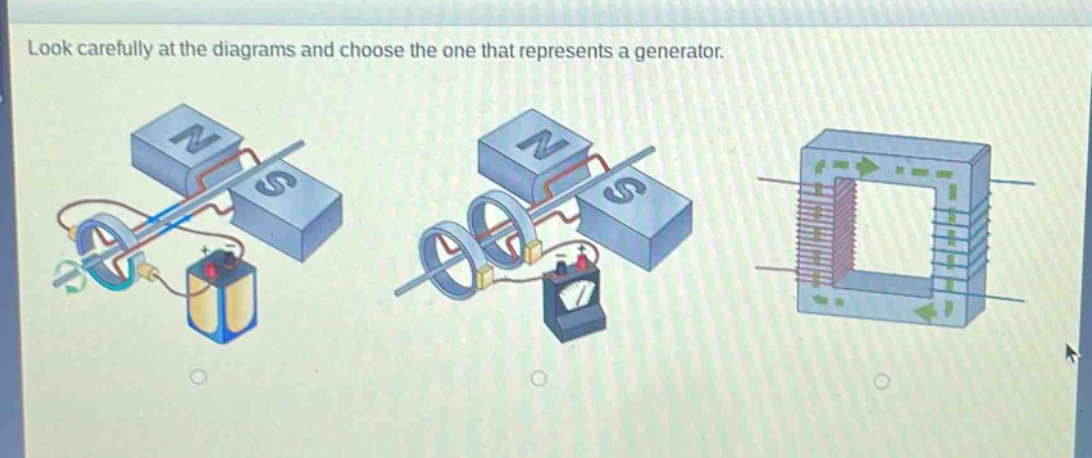

The first diagram shows a coil connected to a battery, causing the coil to rotate within a magnetic field. This represents an electric motor, which converts electrical energy into mechanical energy. The second diagram shows a coil rotating within a magnetic field, and this rotation induces a current that is measured by a meter. This represents an electric generator. The third diagram shows a transformer, which is used to change the voltage of an alternating current. It does not generate electricity but rather modifies its voltage.
Therefore, the diagram that represents a generator is the second one.
Answer:
The second diagram (the middle one) represents a generator.
