predicting results with a circuit\nuse the diagram to answer each question with yes or no.\nif you removed…

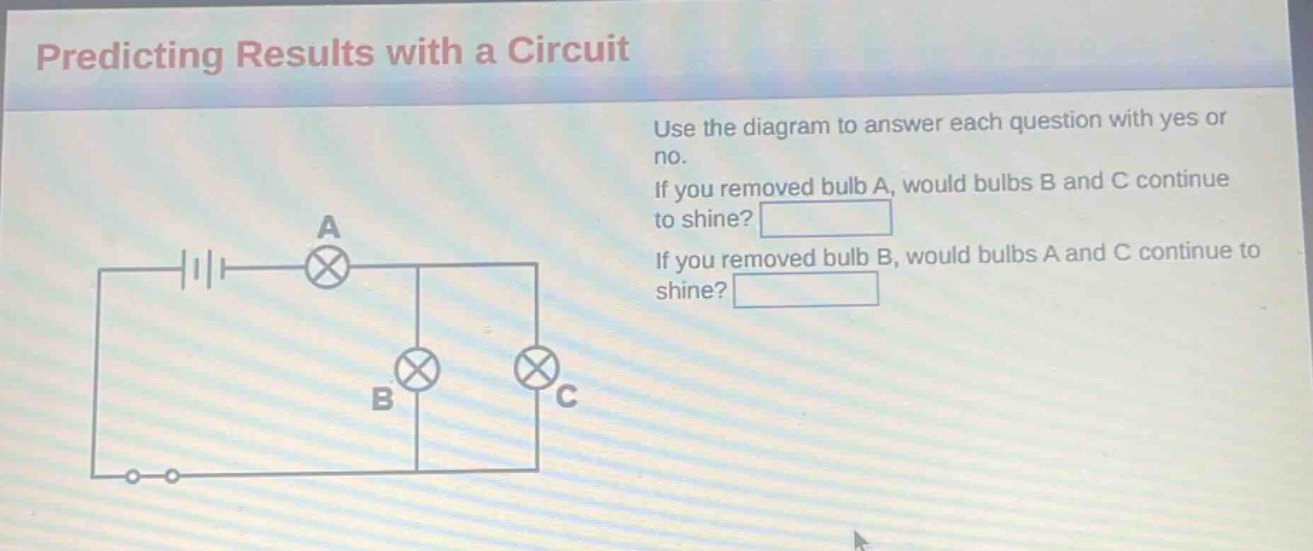

predicting results with a circuit\nuse the diagram to answer each question with yes or no.\nif you removed bulb a, would bulbs b and c continue to shine?\nif you removed bulb b, would bulbs a and c continue to shine?

predicting results with a circuit\nuse the diagram to answer each question with yes or no.\nif you removed bulb a, would bulbs b and c continue to shine?\nif you removed bulb b, would bulbs a and c continue to shine?

Answer

Explanation:

Step1: Analyze bulb A removal

Bulb A is in the main - series part of the circuit. Removing it breaks the circuit for all bulbs.

Step2: Analyze bulb B removal

Bulbs B and C are in parallel. Removing bulb B does not affect the path for bulb C and bulb A is still in the main - circuit.

Answer:

No Yes
