a ray diagram is shown. which letter represents the location of the image produced by the lens? o w o x o y…

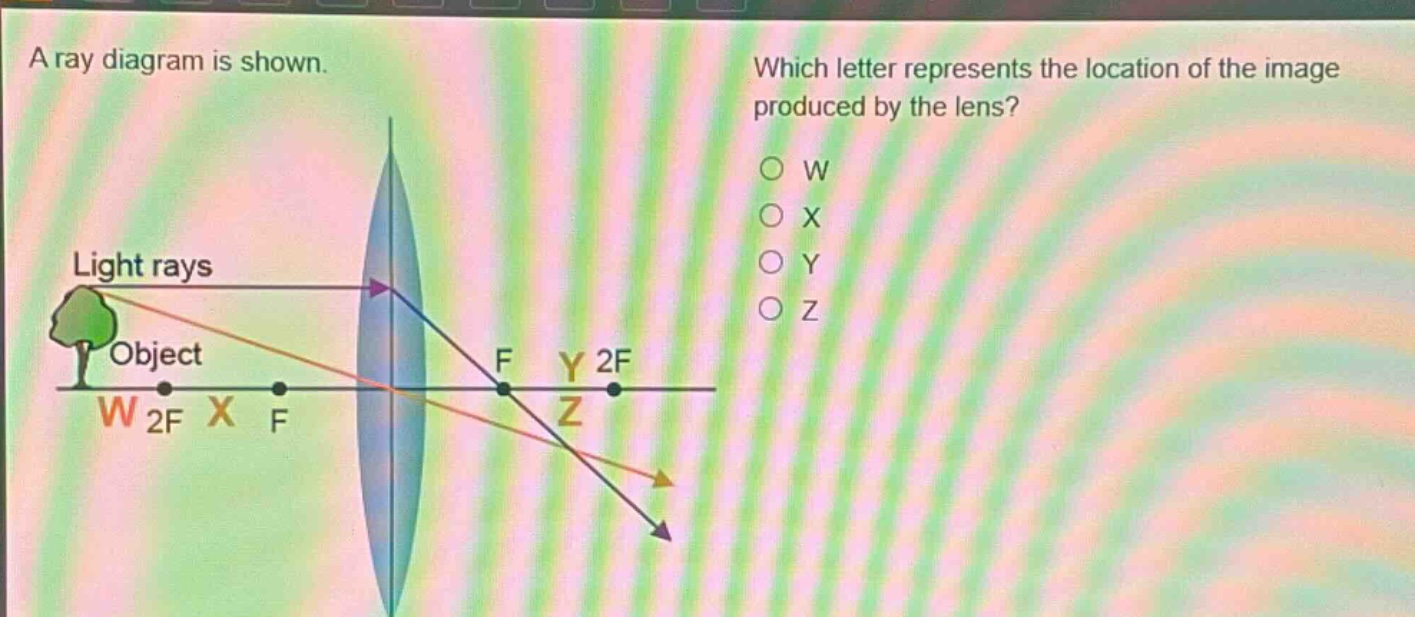

a ray diagram is shown. which letter represents the location of the image produced by the lens? o w o x o y o z light rays object w 2f x f f y 2f z
Answer
Explanation:
Step1: Recall lens - image formation rules
For a converging lens, when the object is placed beyond 2F (twice the focal length), the image is formed between F and 2F on the other side of the lens.
Step2: Analyze the ray - diagram
The object is placed beyond 2F on the left - hand side of the lens. The rays after passing through the lens converge at a point between F and 2F on the right - hand side of the lens. Point Z is the location between F and 2F on the right - hand side of the lens.
Answer:
Z
