a ray diagram is shown. which letter represents the location of the image produced by the lens? o w o x o y…

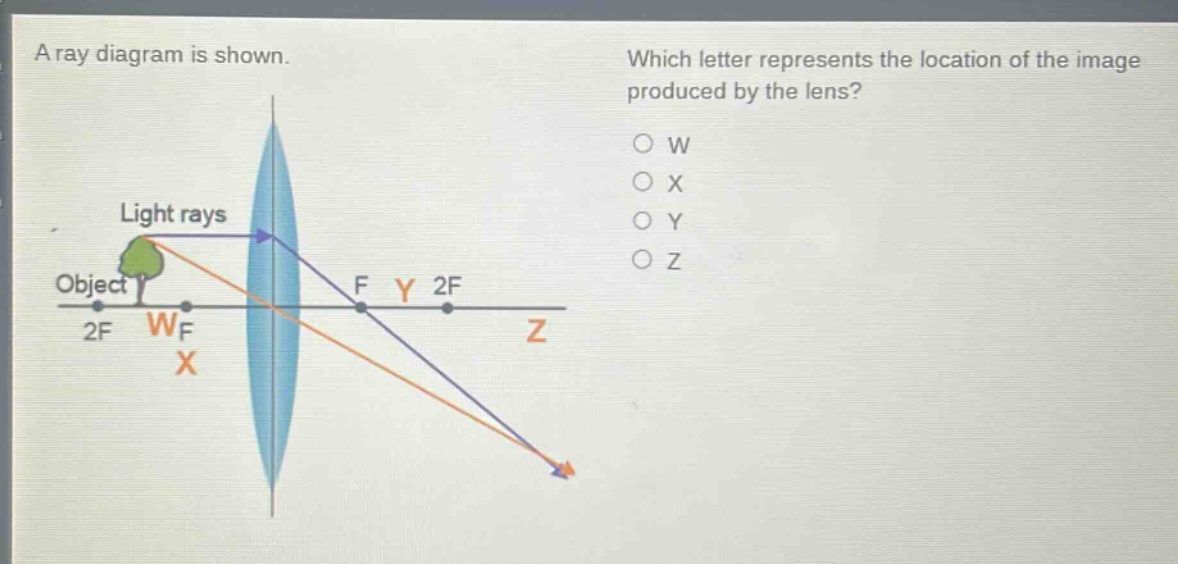

a ray diagram is shown. which letter represents the location of the image produced by the lens? o w o x o y o z light rays object 2f w f x f y 2f z
Answer
Explanation:
Step1: Recall lens - ray diagram rules
When an object is placed beyond 2F of a converging lens, the image is formed between F and 2F on the other side of the lens.
Step2: Analyze the given diagram
The object is placed beyond 2F on the left - hand side of the lens. The image will be formed on the right - hand side of the lens between F and 2F. Among the points W, X, Y, and Z, point Y is between F and 2F on the right - hand side of the lens.
Answer:
Y
