a ray diagram without the produced image is shown. which describes the image produced by the lens? upright…

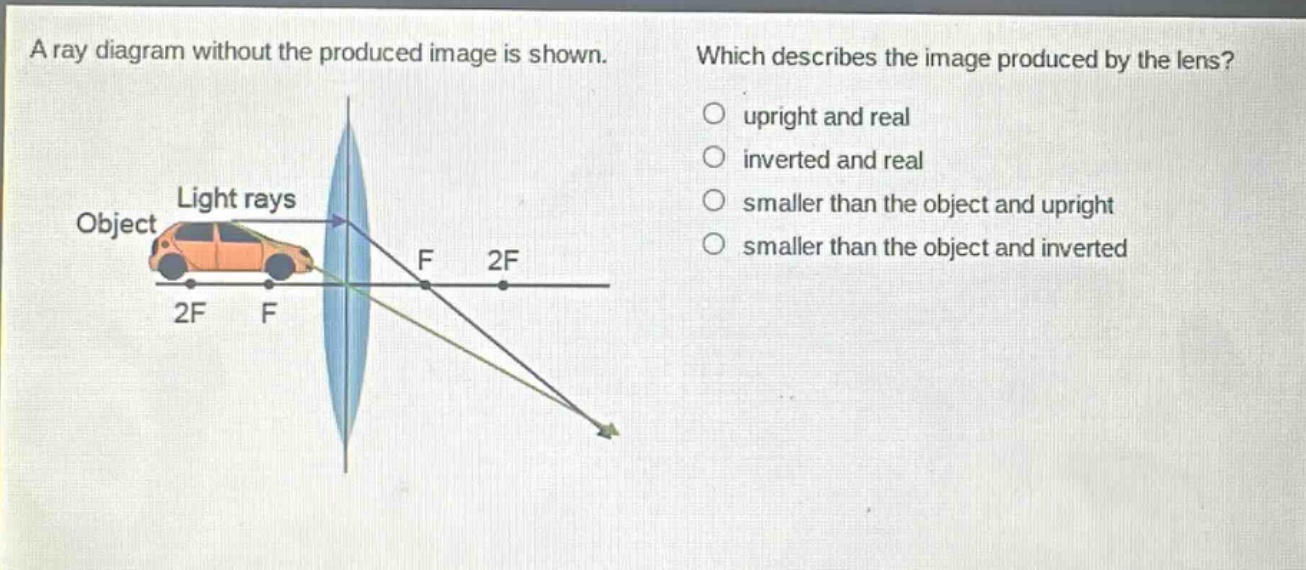

a ray diagram without the produced image is shown. which describes the image produced by the lens? upright and real inverted and real smaller than the object and upright smaller than the object and inverted object light rays f 2f 2f f

a ray diagram without the produced image is shown. which describes the image produced by the lens? upright and real inverted and real smaller than the object and upright smaller than the object and inverted object light rays f 2f 2f f

Answer

Brief Explanations:

When an object is placed between F (focal - point) and 2F of a converging lens, the image formed is real, inverted, and larger than the object. When the object is placed beyond 2F of a converging lens, the image formed is real, inverted, and smaller than the object. In the given ray - diagram, the object is placed beyond 2F of the converging lens. Real images are formed when light rays actually converge and can be projected on a screen. Inverted images are upside - down compared to the object.

Answer:

smaller than the object and inverted
