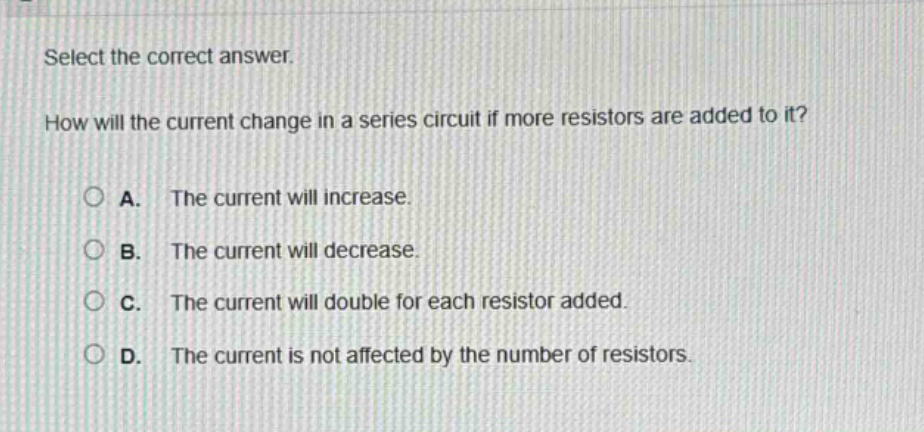

select the correct answer. how will the current change in a series circuit if more resistors are added to it? a. the current will increase. b. the current will decrease. c. the current will double for each resistor added. d. the current is not affected by the number of resistors.

select the correct answer. how will the current change in a series circuit if more resistors are added to it? a. the current will increase. b. the current will decrease. c. the current will double for each resistor added. d. the current is not affected by the number of resistors.

Answer

Explanation:

Step1: Recall Ohm's Law

Ohm's Law is $I=\frac{V}{R}$, where $I$ is current, $V$ is voltage and $R$ is resistance.

Step2: Analyze series - circuit resistance

In a series circuit, when more resistors are added, the total resistance $R_{total}$ increases because $R_{total}=R_1 + R_2+...+R_n$.

Step3: Determine current change

Since the voltage $V$ is assumed to be constant (if the power - source voltage doesn't change), and $I=\frac{V}{R}$, as $R$ increases, the current $I$ decreases according to the inverse - relationship in the formula.

Answer:

B. The current will decrease.
