simple electromagnet\npredict what would happen to the strength of the electromagnet in each…

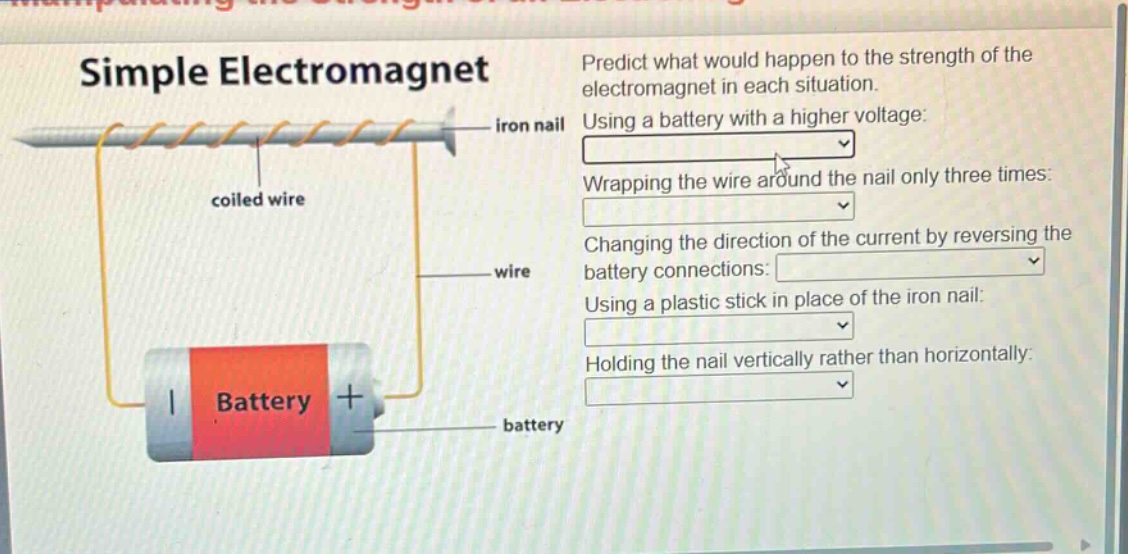

simple electromagnet\npredict what would happen to the strength of the electromagnet in each situation.\nusing a battery with a higher voltage:\nwrapping the wire around the nail only three times:\nchanging the direction of the current by reversing the battery connections:\nusing a plastic stick in place of the iron nail:\nholding the nail vertically rather than horizontally:\niron nail\ncoiled wire\nwire\nbattery

simple electromagnet\npredict what would happen to the strength of the electromagnet in each situation.\nusing a battery with a higher voltage:\nwrapping the wire around the nail only three times:\nchanging the direction of the current by reversing the battery connections:\nusing a plastic stick in place of the iron nail:\nholding the nail vertically rather than horizontally:\niron nail\ncoiled wire\nwire\nbattery

Answer

Answer:

  1. The strength of the electromagnet increases.
  2. The strength of the electromagnet decreases.
  3. The strength of the electromagnet remains the same, but the polarity changes.
  4. The strength of the electromagnet decreases to almost zero (plastic is non - magnetic).
  5. The strength of the electromagnet remains the same.

Explanation:

Step1: Voltage and current relation

Higher voltage means higher current (Ohm's law $I=\frac{V}{R}$). More current, stronger magnetic field.

Step2: Number of turns and field strength

Fewer turns of wire mean less magnetic field contribution from each turn, so field strength decreases.

Step3: Current direction and field strength

Changing current direction changes magnetic field polarity, but not the magnitude of the field (Ampere - Maxwell law).

Step4: Magnetic core material

Iron is ferromagnetic, plastic is not. Without a ferromagnetic core, magnetic field strength drops significantly.

Step5: Orientation and field strength

Orientation of the nail in the absence of an external magnetic field gradient does not affect the internal magnetic field generation of the electromagnet.
