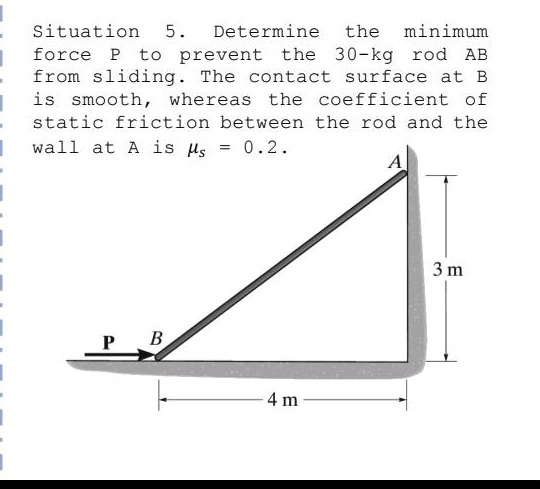

situation 5. determine the minimum force p to prevent the 30 - kg rod ab from sliding. the contact surface…

Explanation:

Step1: Calculate the weight of the rod

The weight of the rod $W = mg$, where $m = 30$ kg and $g=9.81$ m/s². So $W=30\times9.81 = 294.3$ N.

Step2: Determine the length of the rod

Using the Pythagorean theorem, the length of the rod $L=\sqrt{3^{2}+4^{2}}=5$ m.

Step3: Take the moment about point B

Let the normal force at A be $N_A$ and the frictional force at A be $F_A=\mu_sN_A$. Taking the moment about point B, $\sum M_B = 0$. The weight acts at the mid - point of the rod. The perpendicular distance from the line of action of the weight to point B is $\frac{5}{2}\times\frac{4}{5}=2$ m, and the perpendicular distance from the line of action of $N_A$ to point B is 3 m, and the perpendicular distance from the line of action of $F_A$ to point B is 4 m. So $W\times2 - N_A\times3+F_A\times4 = 0$. Substitute $F_A = 0.2N_A$ into the moment equation: $294.3\times2-3N_A + 0.2N_A\times4=0$.

Step4: Solve for $N_A$

$588.6-3N_A+0.8N_A = 0$, $588.6=(3 - 0.8)N_A$, $N_A=\frac{588.6}{2.2}=267.55$ N.

Step5: Apply the equilibrium equation in the x - direction

$\sum F_x=0$, $P - F_A=0$. Since $F_A = 0.2N_A$ and $N_A = 267.55$ N, then $F_A=0.2\times267.55 = 53.51$ N. So $P = 53.51$ N.

Answer:

$53.51$ N
