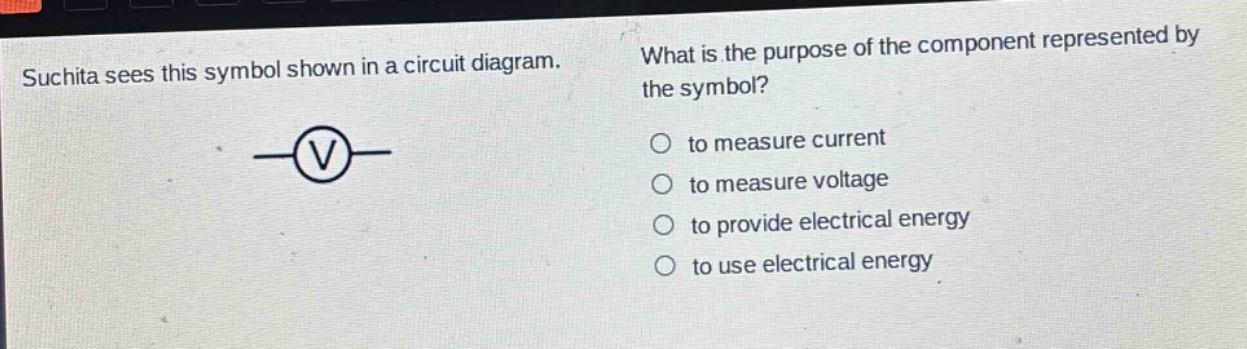

suchita sees this symbol shown in a circuit diagram. what is the purpose of the component represented by the symbol? to measure current to measure voltage to provide electrical energy to use electrical energy
Answer
Brief Explanations:
In circuit diagrams, the symbol with a 'V' in a circle represents a volt - meter. A volt - meter is used to measure the potential difference or voltage across a component or a section of a circuit.
Answer:
to measure voltage
