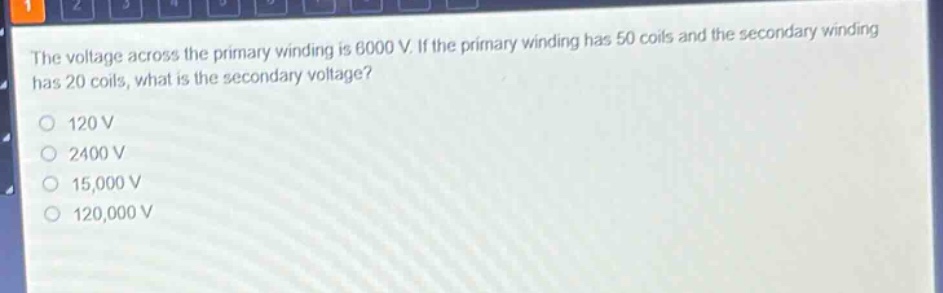

the voltage across the primary winding is 6000 v. if the primary winding has 50 coils and the secondary…

the voltage across the primary winding is 6000 v. if the primary winding has 50 coils and the secondary winding has 20 coils, what is the secondary voltage?\n120 v\n2400 v\n15,000 v\n120,000 v

the voltage across the primary winding is 6000 v. if the primary winding has 50 coils and the secondary winding has 20 coils, what is the secondary voltage?\n120 v\n2400 v\n15,000 v\n120,000 v

Answer

Explanation:

Step1: Recall transformer - voltage ratio formula

The formula for a transformer is $\frac{V_p}{V_s}=\frac{N_p}{N_s}$, where $V_p$ is the primary - voltage, $V_s$ is the secondary - voltage, $N_p$ is the number of primary coils, and $N_s$ is the number of secondary coils.

Step2: Rearrange the formula to solve for $V_s$

We can rewrite the formula as $V_s=\frac{N_s}{N_p}\times V_p$.

Step3: Substitute the given values

Given that $V_p = 6000$ V, $N_p = 50$, and $N_s = 20$. Then $V_s=\frac{20}{50}\times6000$. $V_s = 0.4\times6000=2400$ V.

Answer:

B. 2400 V
