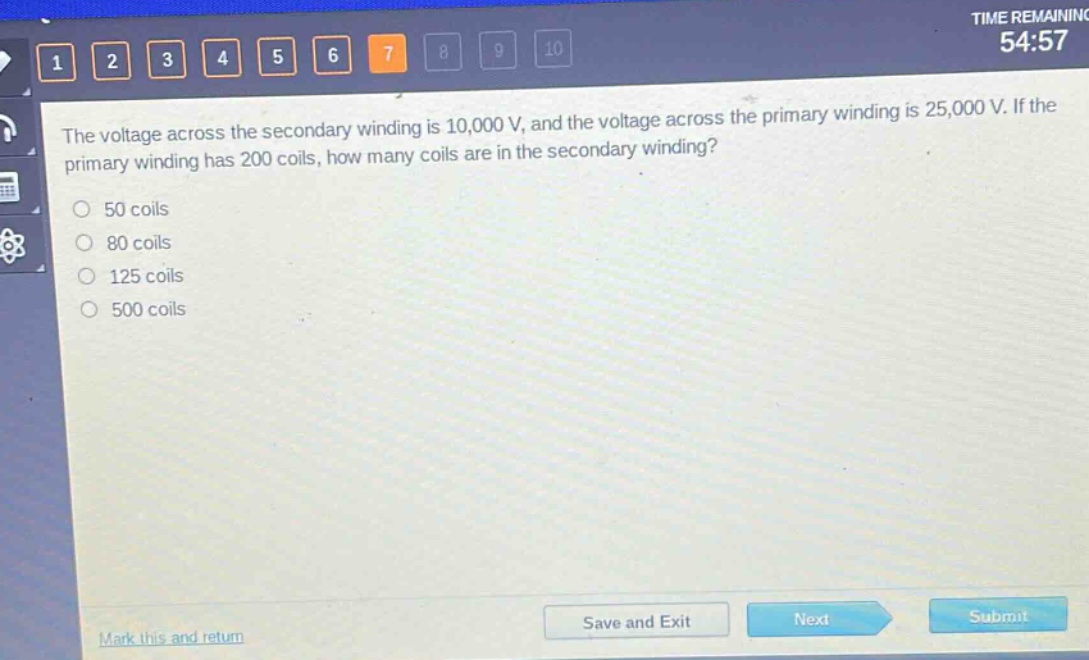

the voltage across the secondary winding is 10,000 v, and the voltage across the primary winding is 25,000 v. if the primary winding has 200 coils, how many coils are in the secondary winding?\n50 coils\n80 coils\n125 coils\n500 coils

the voltage across the secondary winding is 10,000 v, and the voltage across the primary winding is 25,000 v. if the primary winding has 200 coils, how many coils are in the secondary winding?\n50 coils\n80 coils\n125 coils\n500 coils

Answer

Explanation:

Step1: Use the transformer voltage - coil relationship formula

The formula for a transformer is (\frac{V_s}{V_p}=\frac{N_s}{N_p}), where (V_s) is the secondary voltage, (V_p) is the primary voltage, (N_s) is the number of secondary coils, and (N_p) is the number of primary coils. We are given (V_s = 10000\space V), (V_p=25000\space V), and (N_p = 200).

Step2: Solve for (N_s)

From (\frac{V_s}{V_p}=\frac{N_s}{N_p}), we can cross - multiply to get (N_s=\frac{V_s\times N_p}{V_p}). Substitute the given values: (N_s=\frac{10000\times200}{25000}). First, calculate (10000\times200 = 2000000). Then, (\frac{2000000}{25000}=80).

Answer:

80 coils
