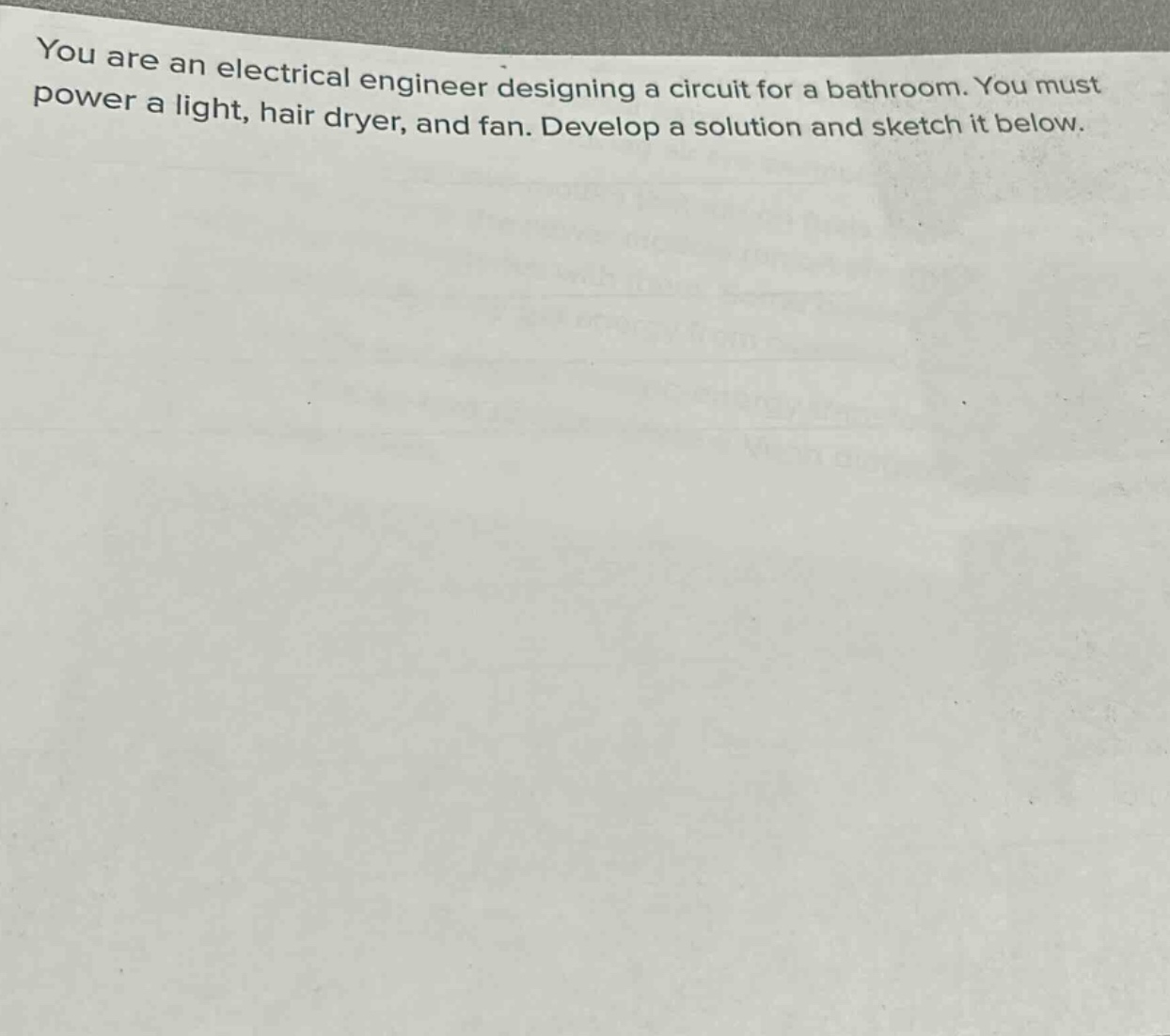

you are an electrical engineer designing a circuit for a bathroom. you must power a light, hair dryer, and…

Explanation:

Step1: Select a power - source

Choose a standard household electrical supply (e.g., 120V or 240V depending on the region).

Step2: Design a parallel circuit

Connect the light, hair - dryer, and fan in parallel to the power - source. This ensures that each device gets the full supply voltage and can operate independently. Use appropriate wiring gauges based on the power requirements of each device. For example, the hair - dryer may require a thicker gauge wire due to its high power consumption.

Step3: Add safety features

Include a ground wire for safety to prevent electrical shocks. Install a circuit breaker or fuse in the main line to protect against over - current situations. Also, use a GFCI (Ground - Fault Circuit - Interrupter) as bathrooms are wet environments and pose a higher risk of electrical faults.

Step4: Sketch the circuit

Draw a simple circuit diagram with the power - source represented by two parallel lines (for a DC source) or a sine - wave symbol (for an AC source). Connect the light, hair - dryer, and fan in parallel to the power - source. Show the ground wire connected to the metal casings of the devices (if applicable) and the GFCI and circuit breaker in the main line.

Answer:

A parallel circuit design with a suitable power - source, safety features (ground wire, GFCI, circuit breaker/fuse), and appropriate wiring for the light, hair - dryer, and fan. A sketch of the described circuit should be drawn as per the above - mentioned elements.
