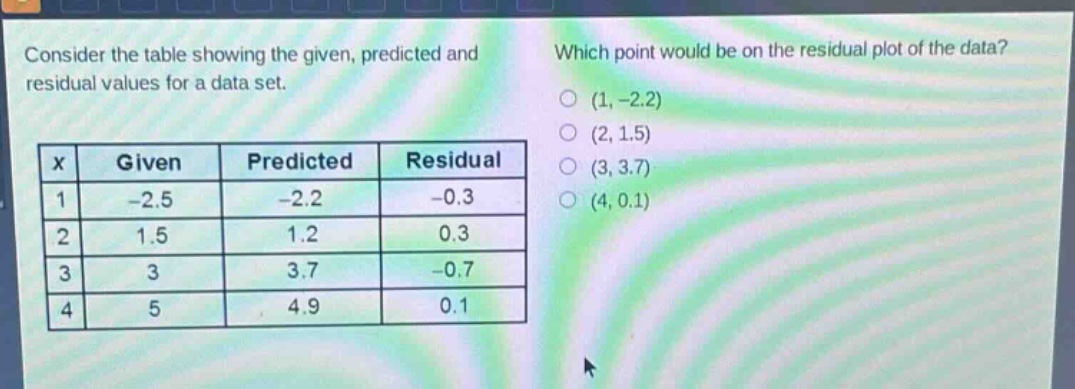

consider the table showing the given, predicted and residual values for a data set. which point would be on the residual plot of the data?\n|x|given|predicted|residual|\n|----|----|----|----|\n|1| - 2.5| - 2.2| - 0.3|\n|2|1.5|1.2|0.3|\n|3|3|3.7| - 0.7|\n|4|5|4.9|0.1|\n(1, - 2.2)\n(2, 1.5)\n(3, 3.7)\n(4, 0.1)

consider the table showing the given, predicted and residual values for a data set. which point would be on the residual plot of the data?\n|x|given|predicted|residual|\n|----|----|----|----|\n|1| - 2.5| - 2.2| - 0.3|\n|2|1.5|1.2|0.3|\n|3|3|3.7| - 0.7|\n|4|5|4.9|0.1|\n(1, - 2.2)\n(2, 1.5)\n(3, 3.7)\n(4, 0.1)

Answer

Answer:

D. (4, 0.1)

Explanation:

Step1: Recall residual plot concept

A point on residual plot is (x, residual).

Step2: Check each option

For x = 1, residual is - 0.3 not - 2.2. For x = 2, residual is 0.3 not 1.5. For x = 3, residual is - 0.7 not 3.7. For x = 4, residual is 0.1 which matches option D.
