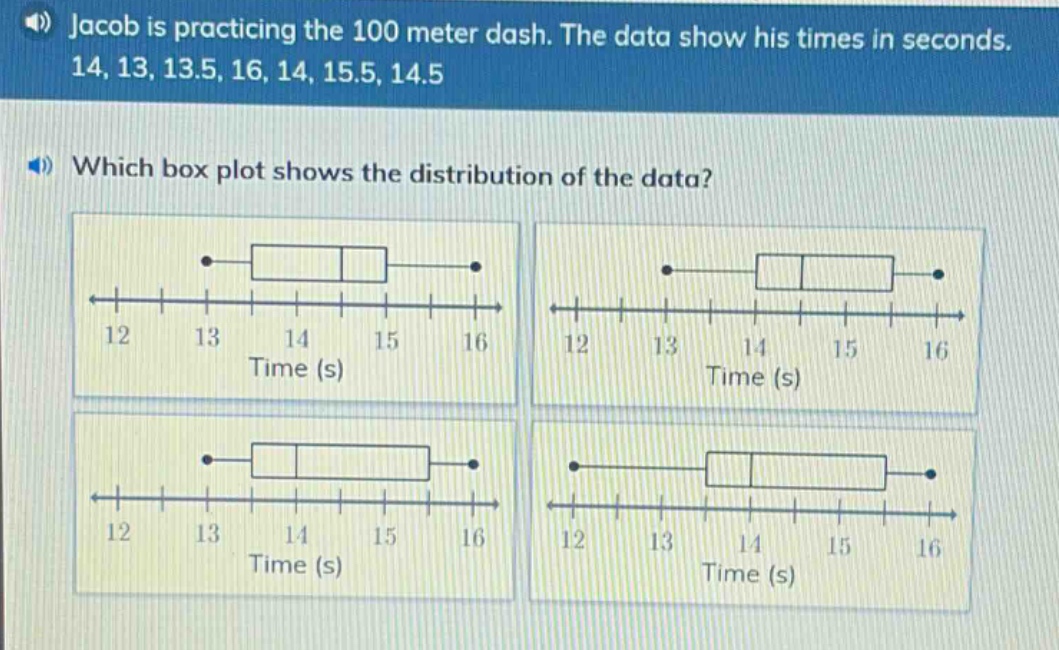

jacob is practicing the 100 meter dash. the data show his times in seconds. 14, 13, 13.5, 16, 14, 15.5…

Explanation:

Step1: Arrange data in ascending order

$13, 13.5, 14, 14, 14.5, 15.5, 16$

Step2: Find the median (Q2)

Since there are 7 data - points, the median is the 4th value. So, $Q2 = 14$.

Step3: Find the lower half of data

The lower half is $13, 13.5, 14$. The median of the lower half (Q1) is $13.5$.

Step4: Find the upper half of data

The upper half is $14.5, 15.5, 16$. The median of the upper half (Q3) is $15.5$.

Step5: Identify the minimum and maximum

The minimum value is $13$ and the maximum value is $16$.

The box - plot should have the minimum at $13$, Q1 at $13.5$, Q2 at $14$, Q3 at $15.5$, and the maximum at $16$.

Answer:

The box - plot that has the left - most point at $13$, the left edge of the box at $13.5$, the line inside the box at $14$, the right edge of the box at $15.5$, and the right - most point at $16$. (Since no options are labeled, you would need to visually identify the correct one based on these values).
